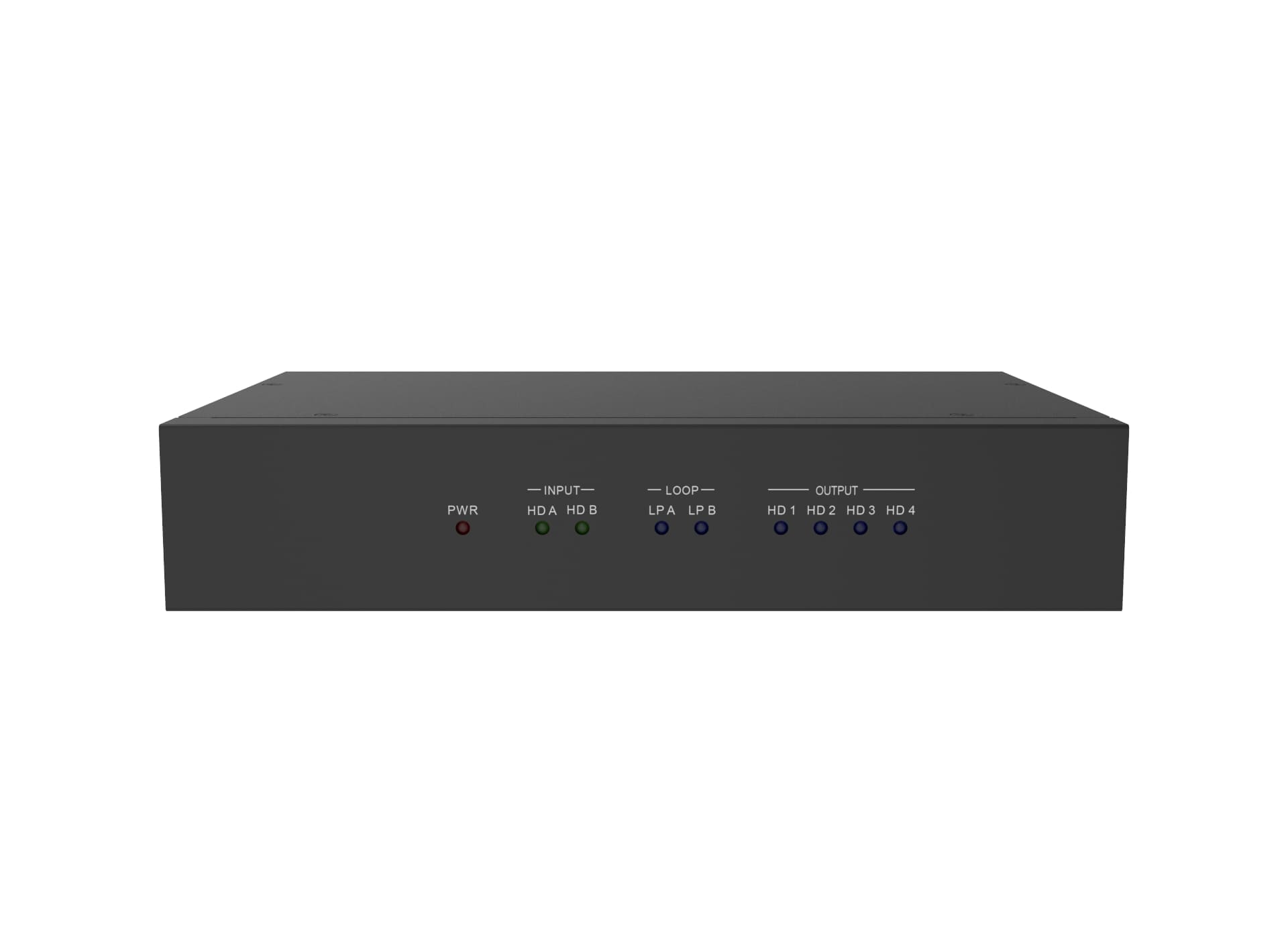

VIDEO WALL Processor 2 X 4

SKU: AHDVW-V2024
Brand: Asuka

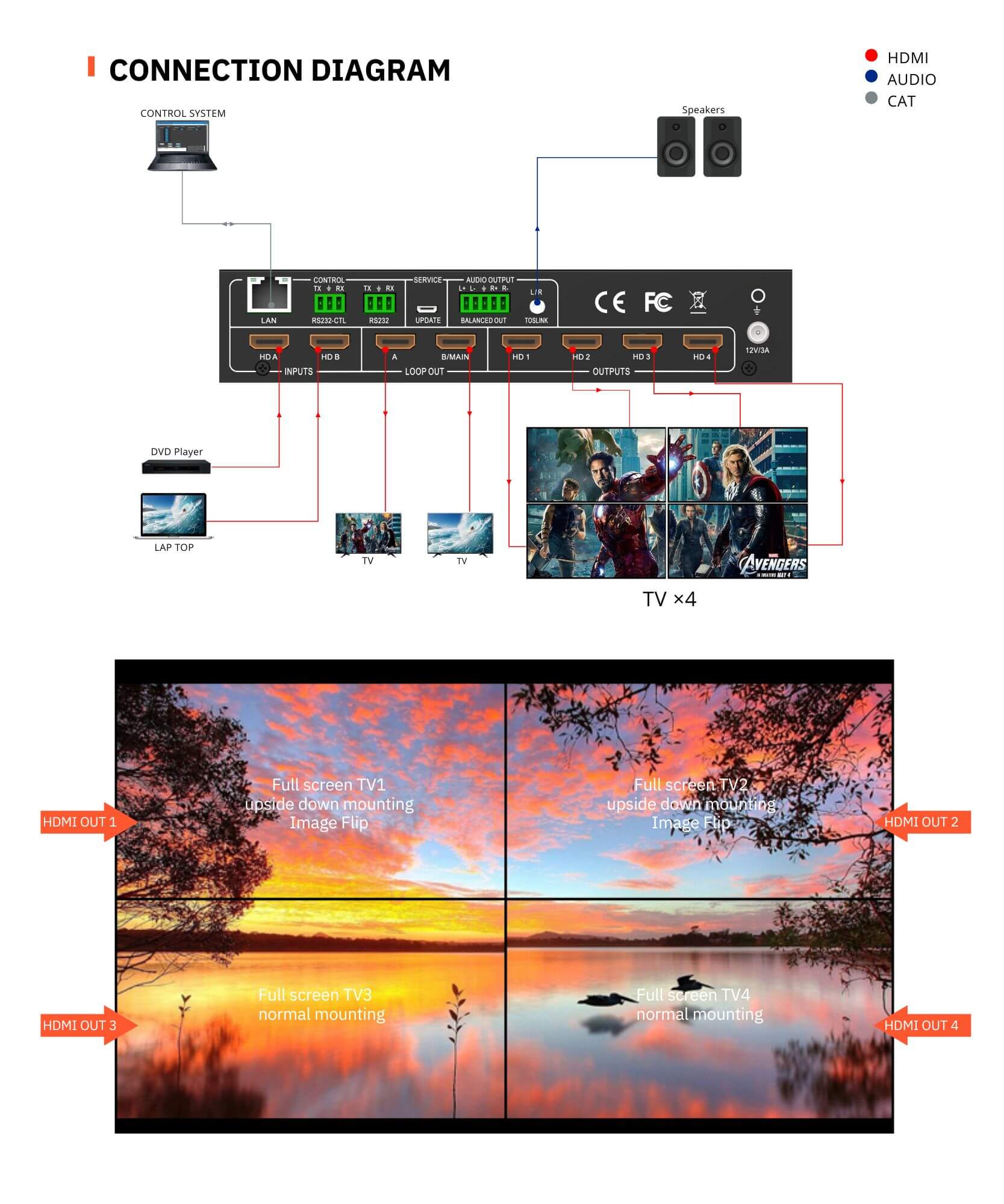

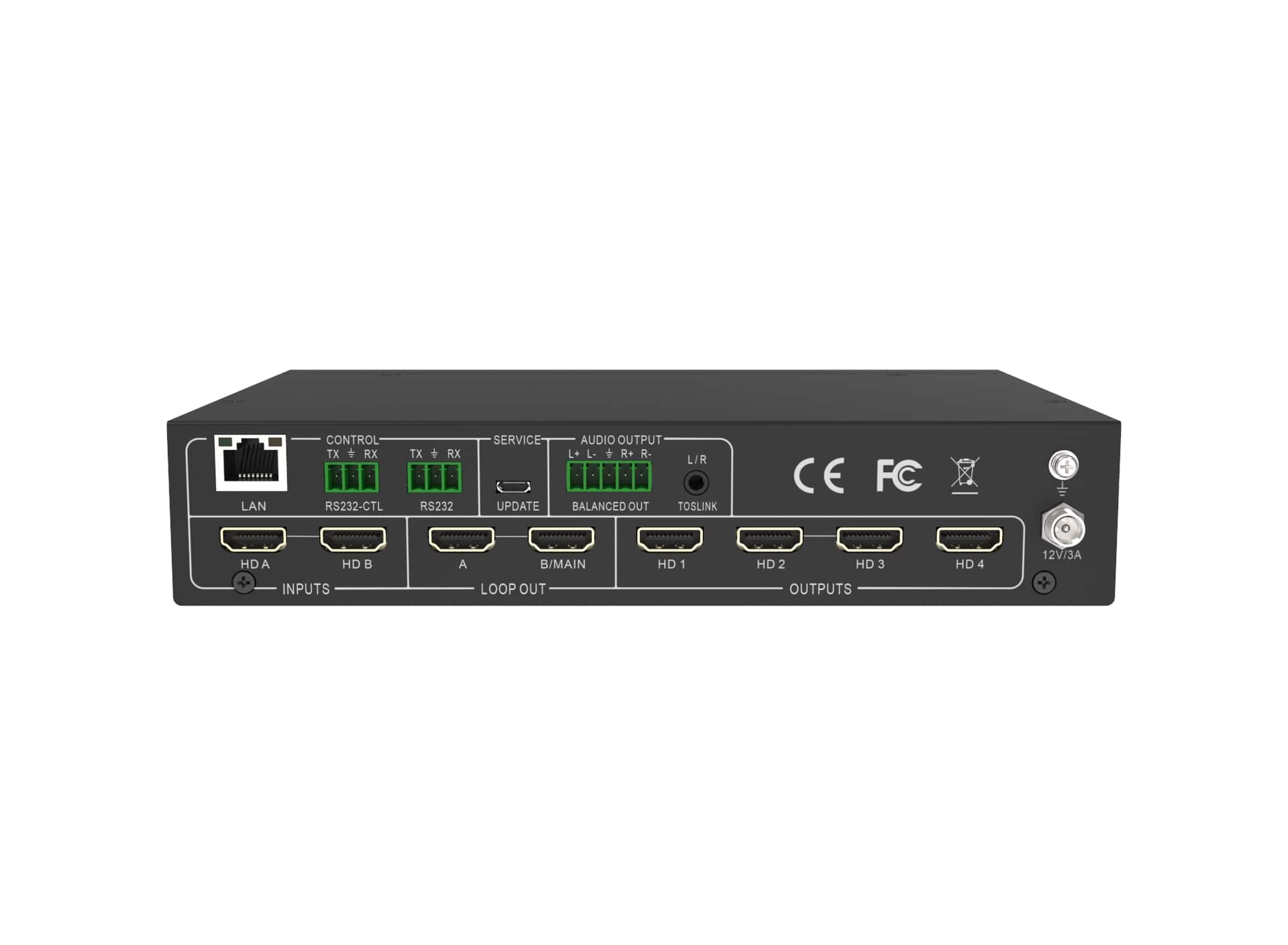

This product is a HDMI 2.0 Video Wall controller with 2 HDMI input, 2 HDMI loop out and 4 HDMI scaling out for video wall processing. The Toslink jack terminal provides analogue L/R audio and digital SPDIF audio output. 5-pin phoenix jacket provides balanced L/R audio output, with PC Tool or RS232 commands to control the product for different wall display.

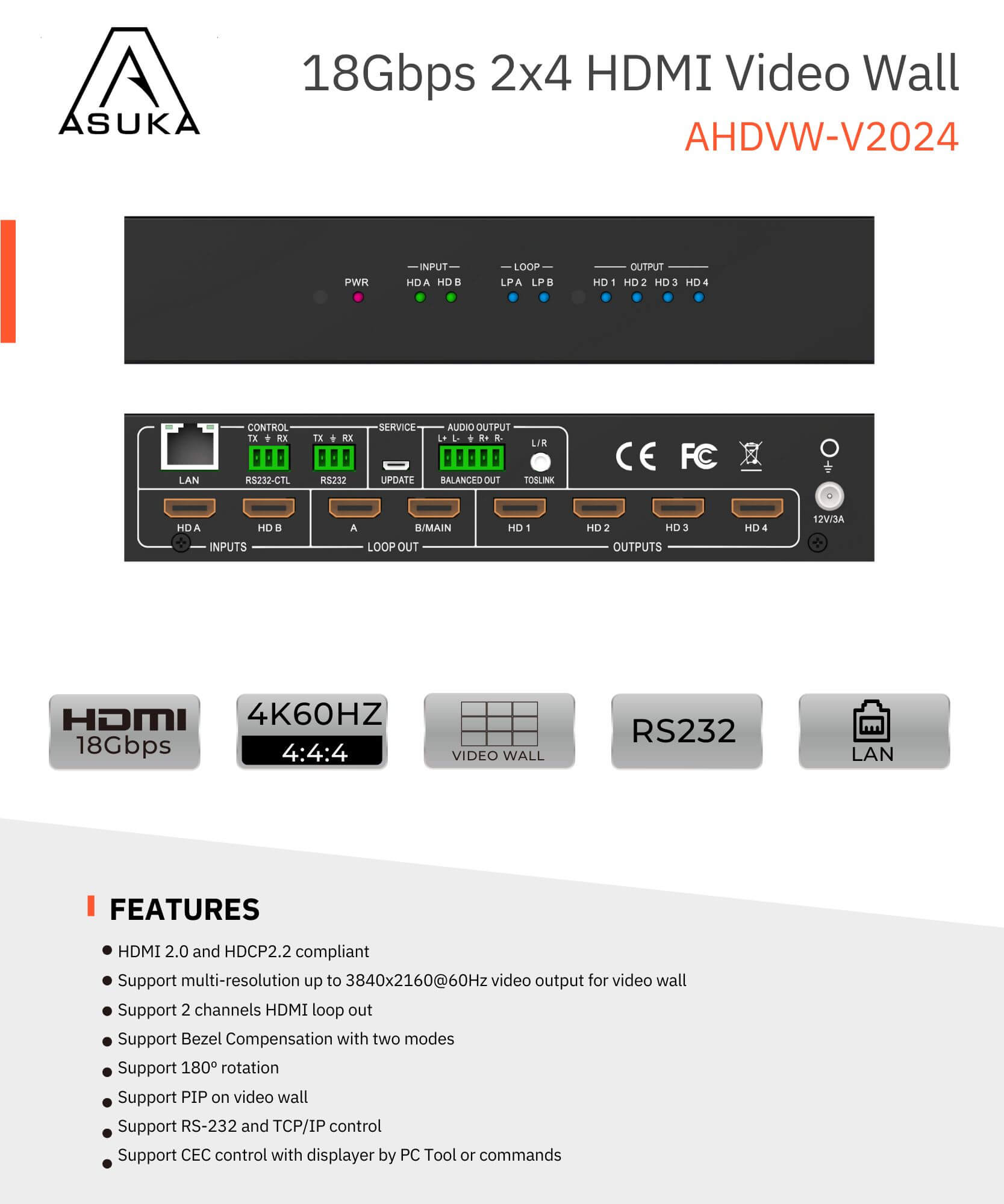

  • HDMI 2.0 and HDCP 2.2 compliant
  • Support multi-resolution up to 3840×2160@60Hz video output for video wall
  • Support 2 channels HDMI loop out
  • Support Bezel Compensation with two modes
  • Support 180º rotation
  • Support PIP on video wall
  • Support RS-232 and TCP/IP control
  • Support CEC control with displayer by PC Tool or commands

Technical
HDMI Compliance HDMI 2.0
HDCP Compliance HDCP 2.2/1.4
RS-232 Baud rate: 57600, data bit: 8, Stop bit: 1, no parity
Input Video Formats 4096x2160p 24/25/30/50/60Hz
3840x2160p 24/25/30/50/60Hz
1080p 24/25/30/50/60Hz
1080i 50/60Hz
1920×1200 60Hz
1680×1050 60Hz
1600×1200 60Hz
1440×900 60Hz
1400×1050 60Hz
1366×768 60Hz
1366×768 60Hz
1280×1024 60Hz
1280×960 60Hz
1280×800 60Hz
1024×768 60Hz
1280x720p 50/60Hz
Audio Format 2.0 channel, 5.1 channel, LPCM, Dolby, AC3, DTS
ESD Protection Human body model – ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Mechanical
Housing Metal Enclosure
Color Black
Dimensions Transmitter / Receiver
218mm (W) x 146mm (D) x 43mm (H)
Weight 2KG
Supply Voltage +12V/3A
Power Consumption 25W (Max)
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 70°C / -4°F ~ 158°F
Relative Humidity 10% ~ 50% RH (non-condensing)
