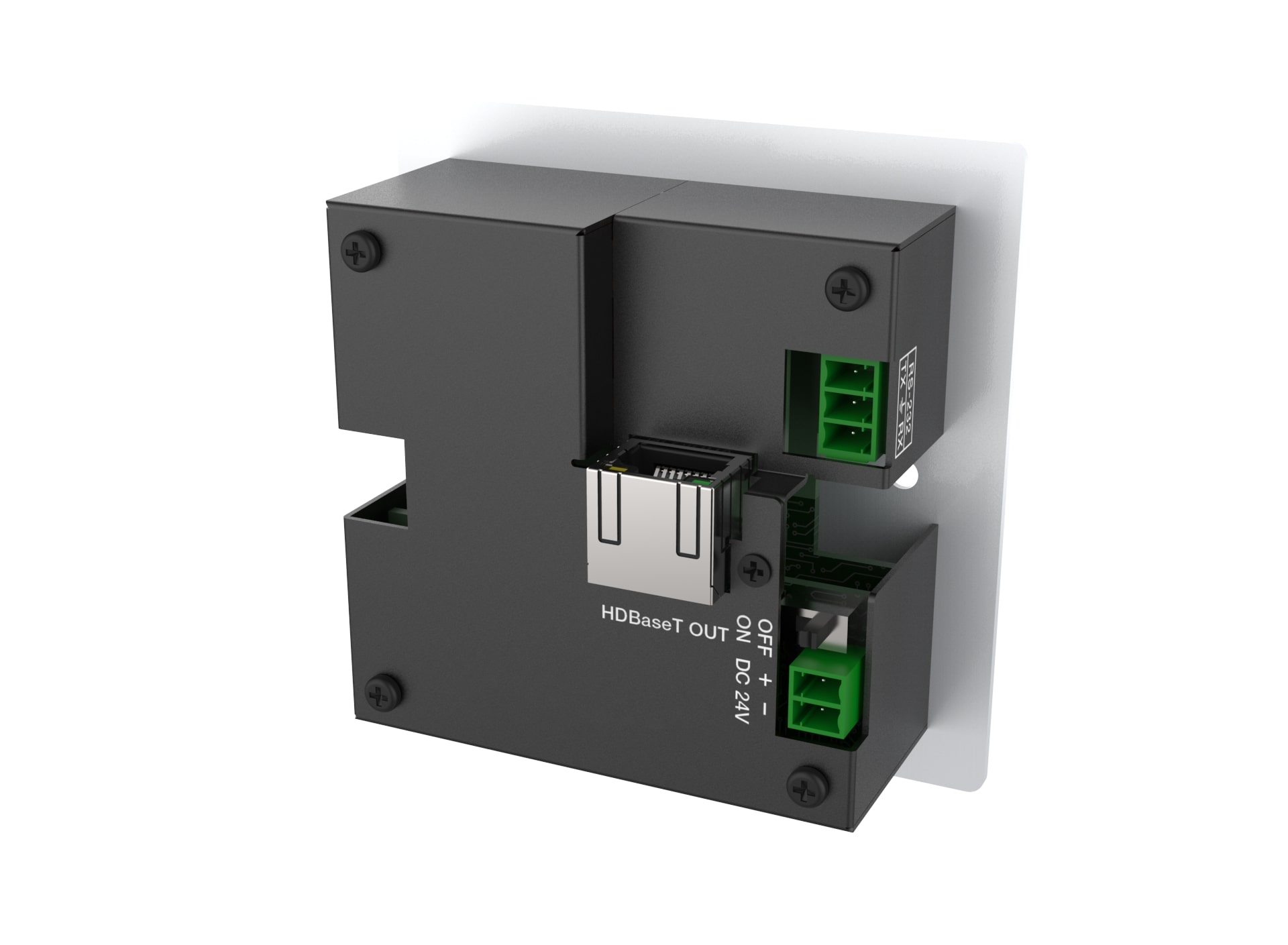

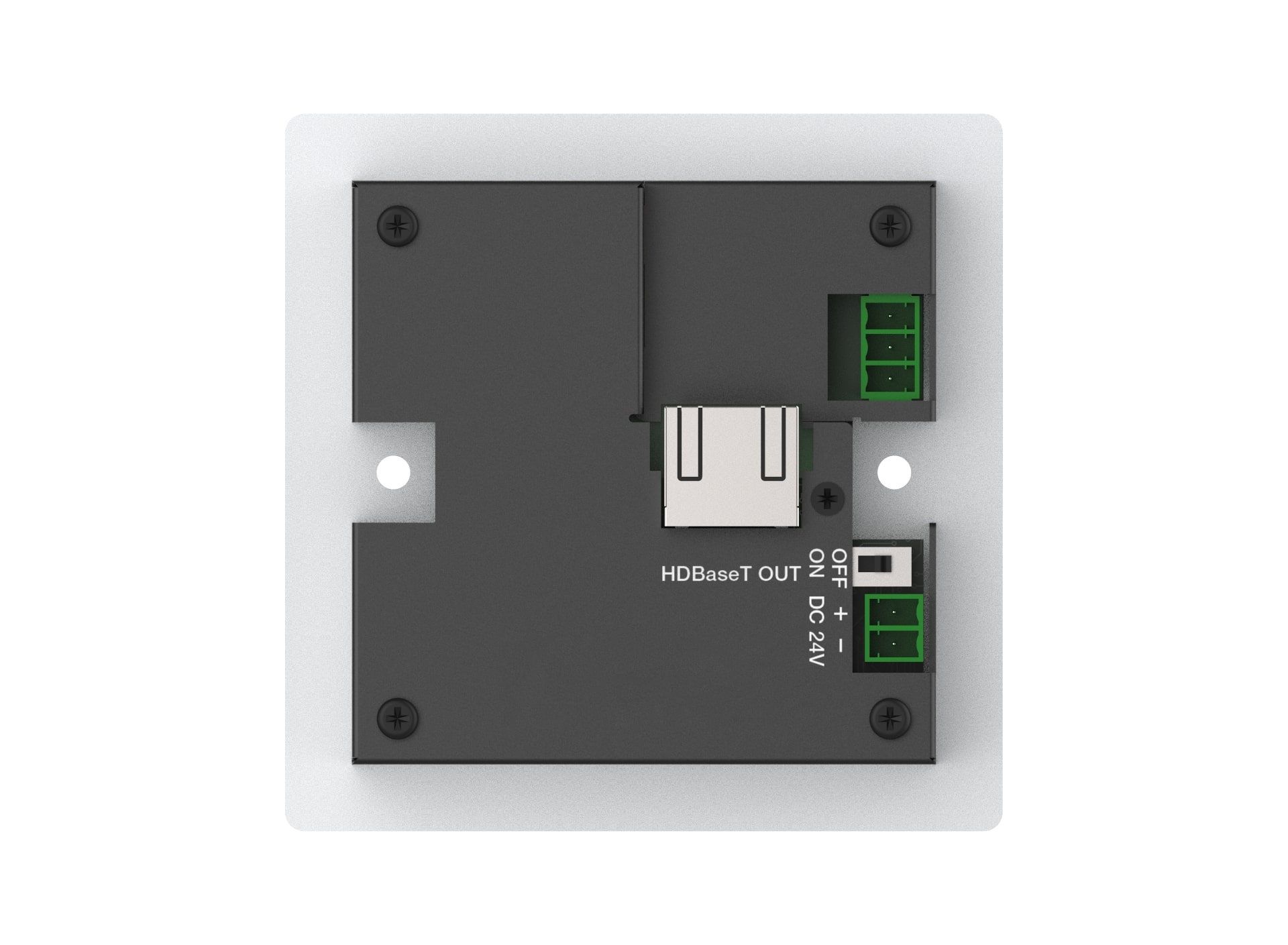

HDMI Wall Plate with IR

SKU: AHDWP-01
Brand: Asuka

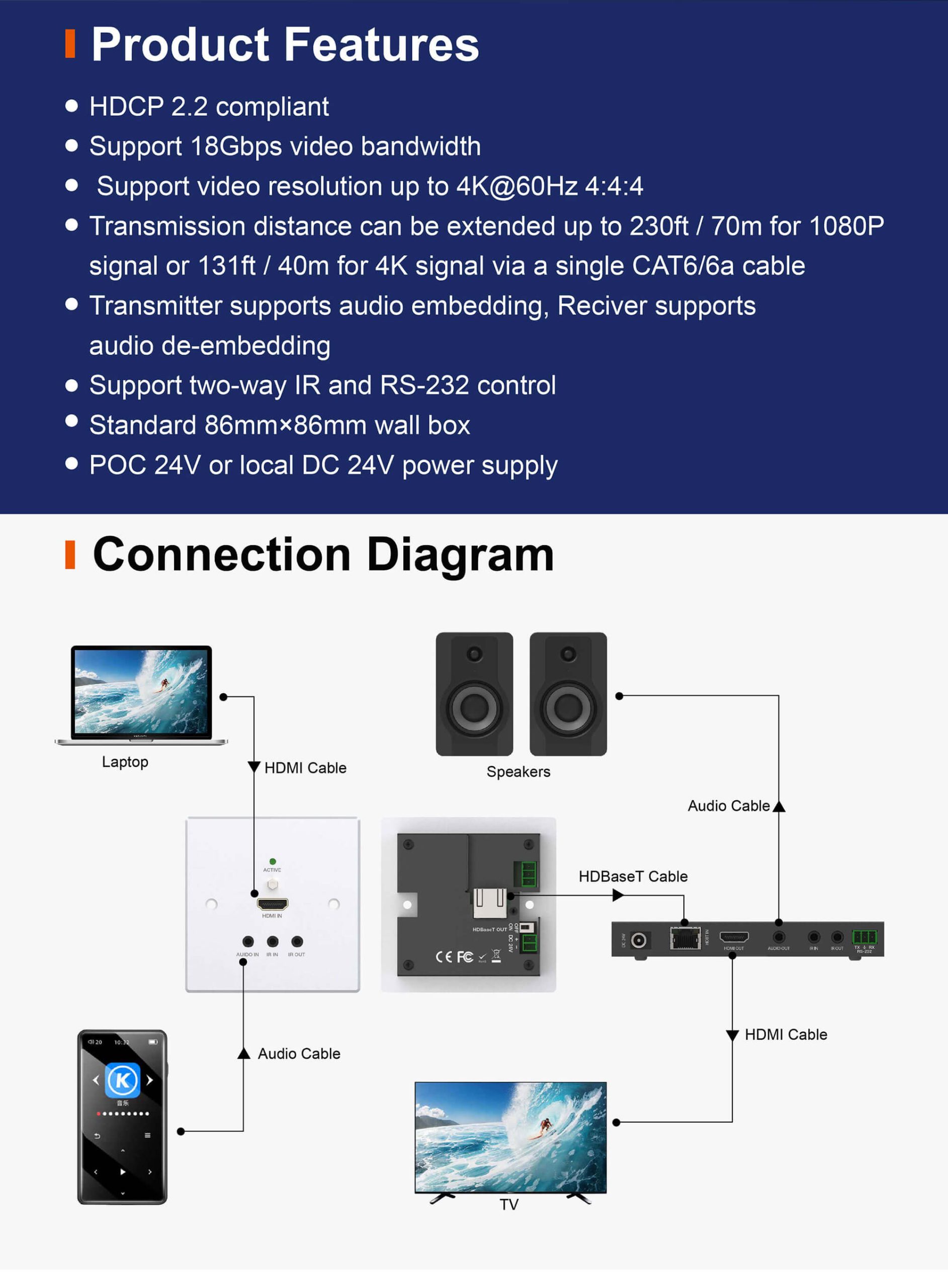

  • HDCP 2.2 compliant
  • Support 18Gbps video bandwidth
  • Support vidoe resolution up to 4K@60Hz 4:4:4
  • Transmission distance can be extended up to 230ft / 70m for 1080P signal or 131ft / 40m for 4K signal via a single CAT6/6a cable
  • Transmitter supports audio embedding, Reciver supports audio de-embedding
  • Support two-way IR and RS-232 control
  • Standard 86mm x 86mm wall box
  • POC 24V or local DC 24V power supply
