HDMI SWITCH 5X1 V2.0 4K60HZ

SKU: AHDSW-V2051
Brand: Asuka

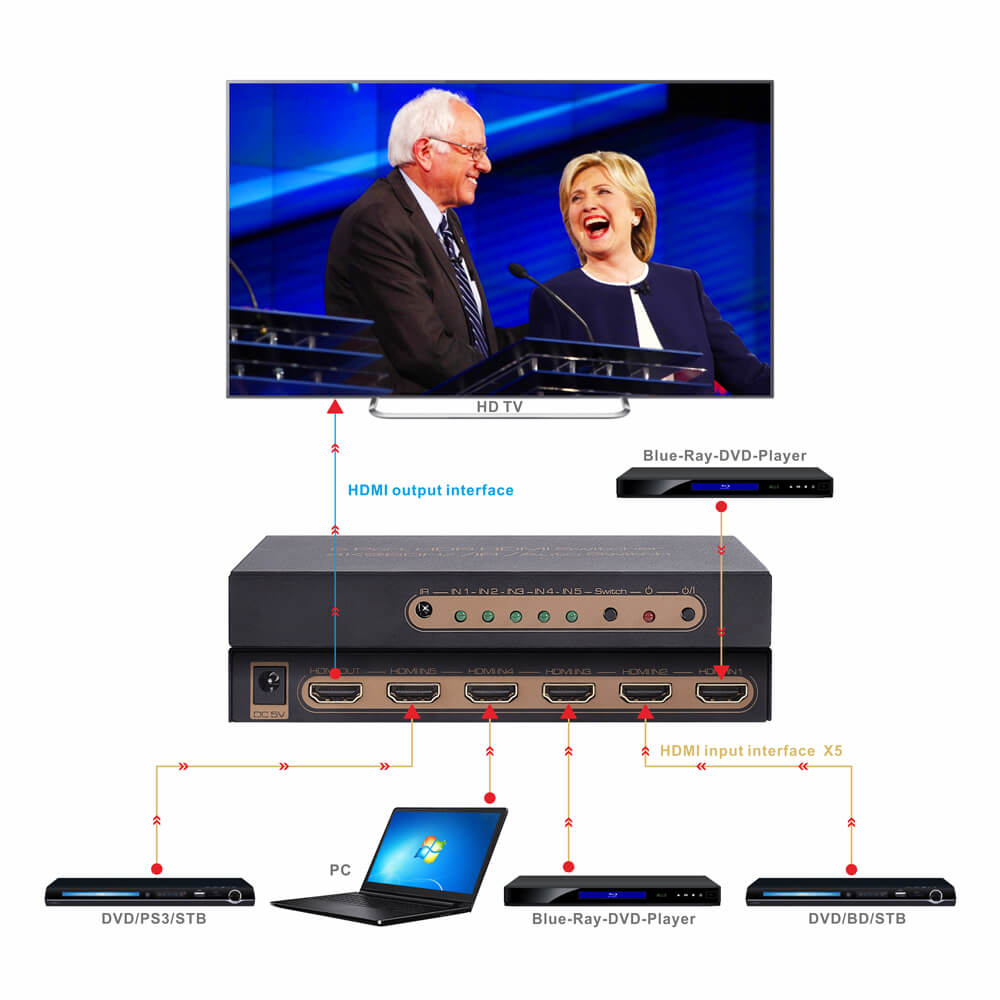

The device can switch 5 HDMI Inputs to one HDMI Output. It can easily switch three routes of HD Source to any one HD display or projector.

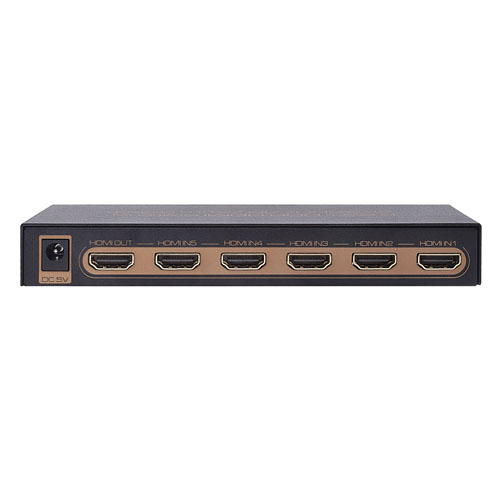

  • Five HDMI Inputs switch to one HDMI Output
  • Support 4K@60Hz UHD signal input and output
  • Support Remote control and HDMI auto switch
  • LED Status Light shows clearly the working state
  • HDMI Input and Output distance can be up to 6m using the AWG26 standard HDMI Cable
  • Easy-Install, plug and play
Download Datasheet

HDMI Resolution 24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i,24/30/2160P
Deep Color 24/30/36bit/1080P/1080i/720p/576p/576i/480P/480i,24bit//2160P
HDMI In/Out Supported Audio Format DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Channel Max Bandwidth 600MHz
Output Resolution Format 480P/720P/1080P/2160@30Hz
Input / Output DDC Signal 5Vp-p(TTL)
HDMI Input Cable Length ≤6m AWG26 HDMI standard cable
HDMI Output Cable Length ≤6m AWG26 HDMI standard cable
Max Working Current 500mA
Working Temperature Range (-0 to +40℃)
Working Humidity Range 5 to 85%RH（No Condensation)
Click here to download datasheet
