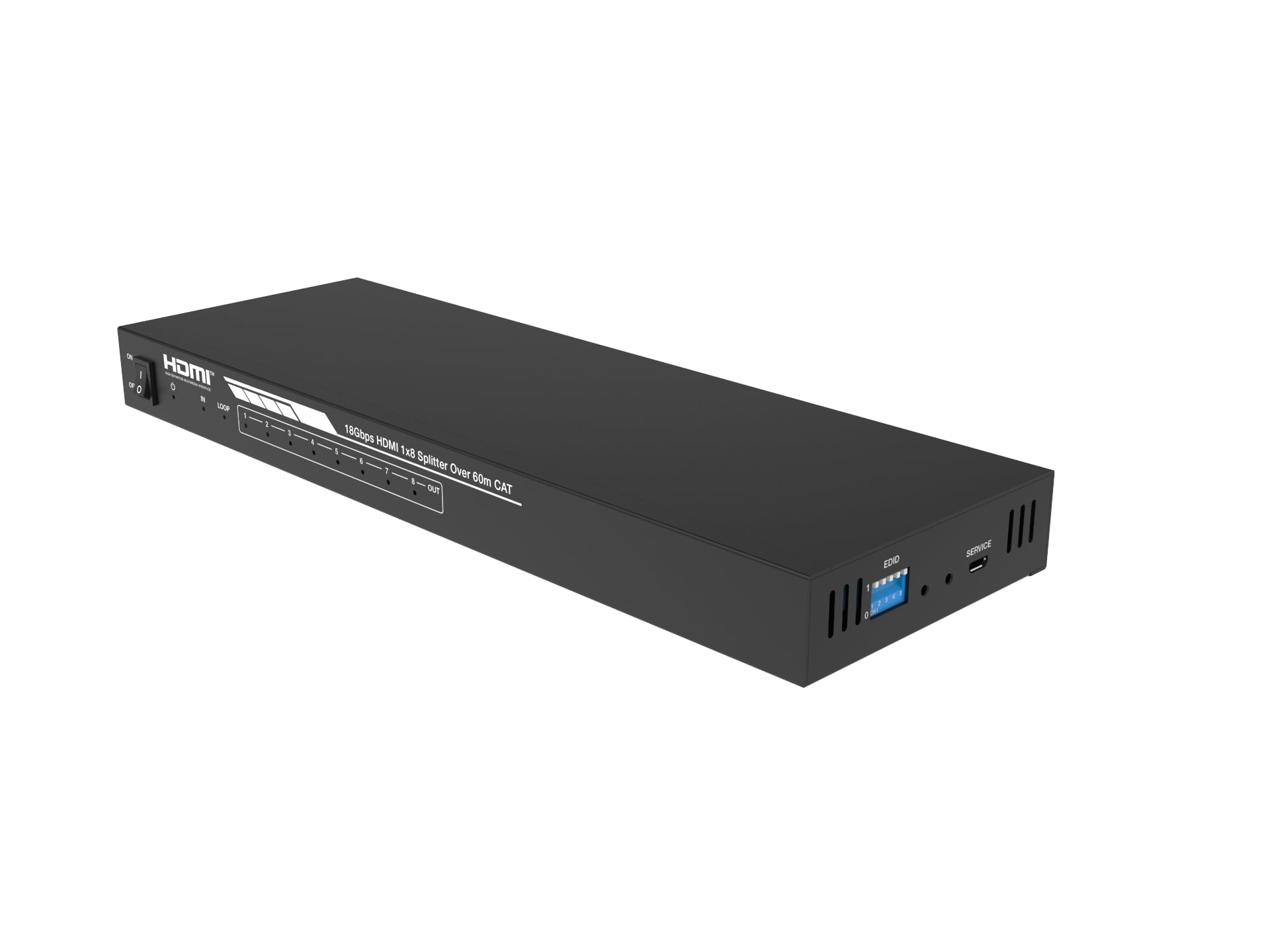

HDMI Splitter 1×8 V2.0 4K60HZ Over cat 60m

SKU: AHDSP-V2018C
Brand: Asuka

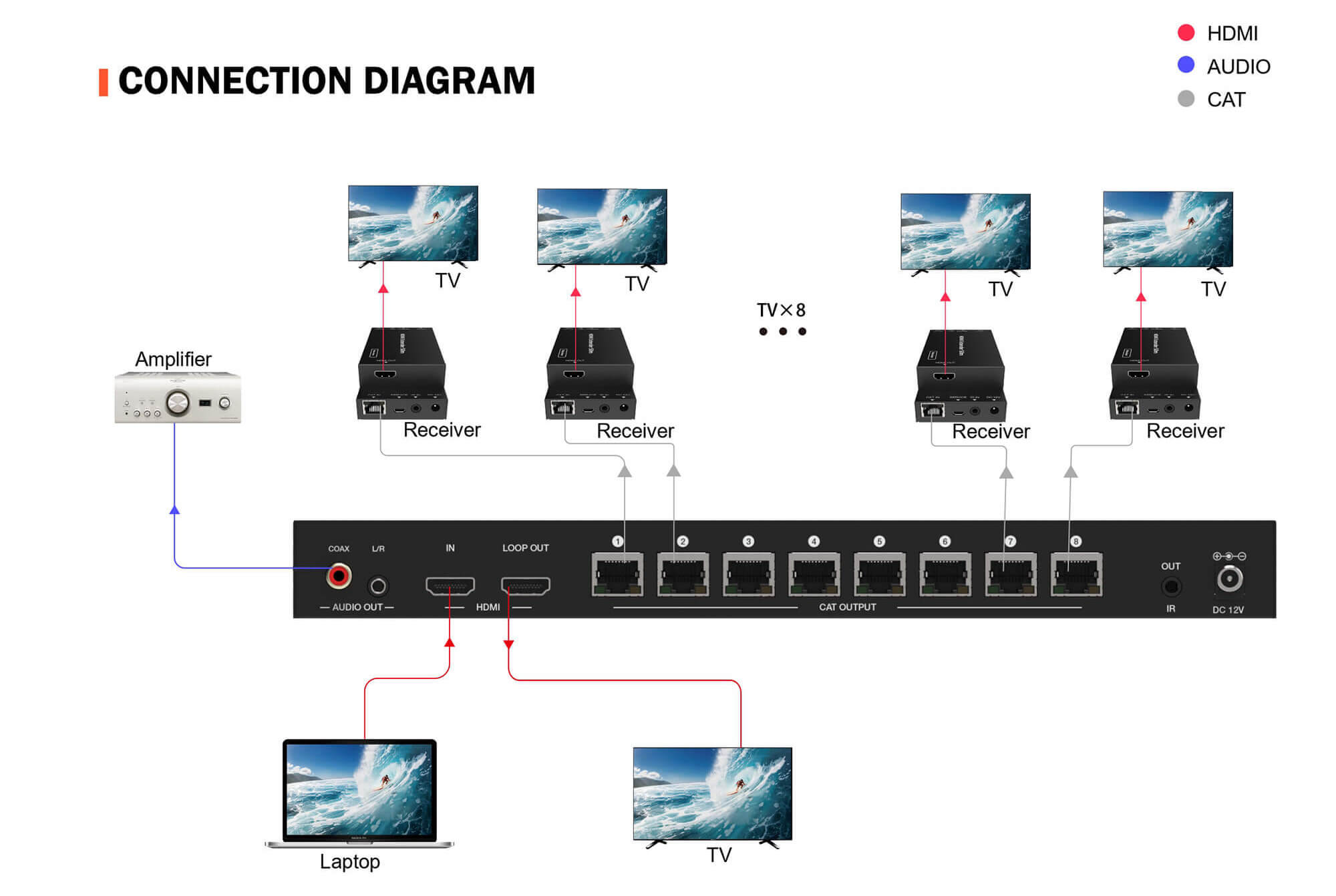

The 18Gbps HDMI 1×8 Splitter can distribute 1 HDMI source signal to any 8 display devices. Support video resolution up to 4K2K@50/60Hz 4:4:4. It is designed with 1 HDMI loop output and 8 CAT outputs. It can extend the signal transmission distance up to 35 meters at the resolution of 4K2K@ 60Hz, or 50 meters at 4K2K@30Hz, or 60 meters at 1080P@60Hz via a single CAT6/6a/7 cable. The product supports one-way IR control signal pass-through, audio extract function and advanced EDID management.

  • HDMI 2.0, HDCP 2.2 / 1.x and DVI 1.0 compliant
  • Support 18Gbps video bandwidth
  • Support video resolution up to 4K2K@50/60Hz 4:4:4
  • Support 3D, HDR, HDR10+, HLG and Dolby vision
  • Support up to 7.1CH HD audio pass-through
  • Support digital and analog audio de-embedded output
  • Extend the signal transmission distance up to 35 meters at the resolution of 4K2K@60Hz, 50 meters at 4K2K@30Hz, 60 meters at 1080P@60Hz via a single CAT6/6a/7 cable
  • Support 1 HDMI input, 1 HDMI loop output and 8 CAT outputs.
  • Support one-way IR control signal pass-through
  • Advanced EDID management
  • Support one-way POC function (only from transmitter to receiver)
  • Compact design for easy and flexible installation

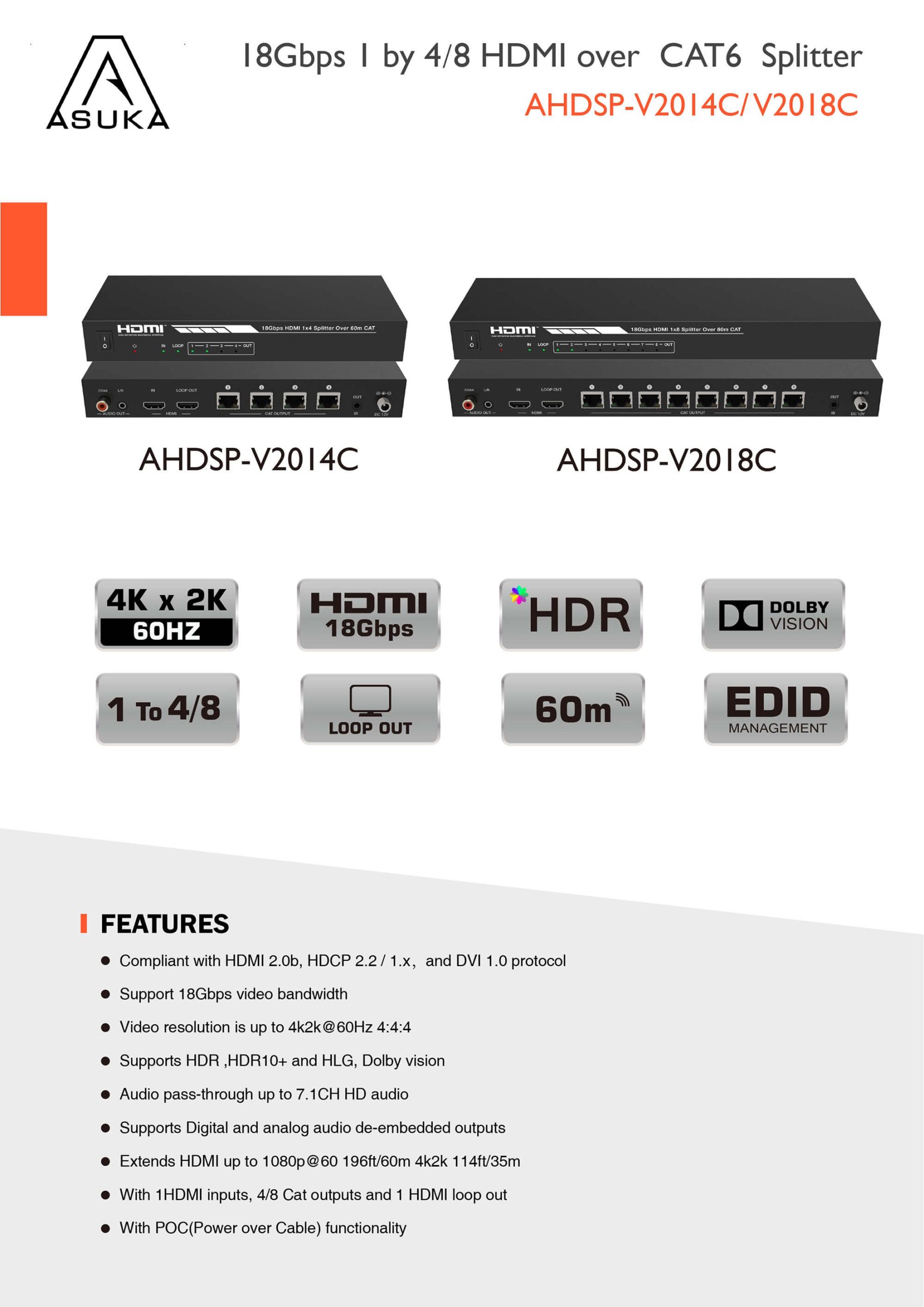

Download Datasheet

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2 / 1.x
Video Bandwidth 594MHz/18Gbps
Video Resolution Up to 4K2K@50/60Hz 4:4:4
Color Space 8-bit,10-bit,12-bit(1080p@60Hz)
8-bit (4K2K@60Hz YUV4:4:4)
8-bit, 10-bit, 12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0)
Color Depth RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0
HDR Support HDR10, HDR10+, HLG, Dolby vision
HDMI Audio Formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Coaxial Audio Formats PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1
Analog Balanced Audio Formats PCM2.0CH
ESD Protection Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
Connection

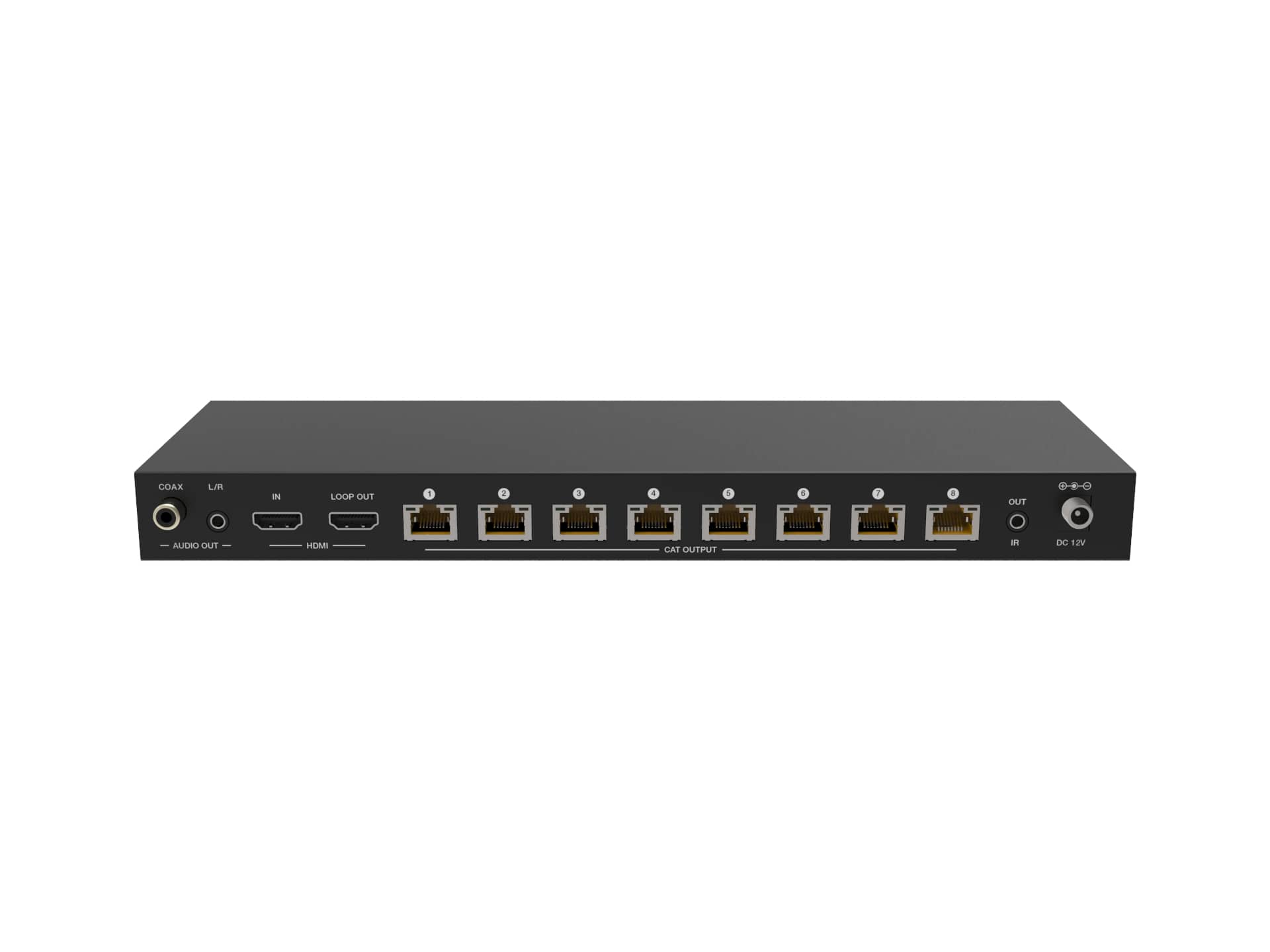

Input 1×HDMI Type A (19-pin female)
Output 1×HDMI Type A (19-pin female)
8x CAT OUT [RJ45, 8-pin female]
1x Coaxial Audio OUT [RCA]
1x L/R Audio OUT [3.5mm Stereo Mini-jack]
Control 1×SERVICE (Micro USB, Update port)
1x EDID DIAL switch [5-pin]
1x IR OUT [3.5mm Stereo Mini-jack]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions Transmitter: 300mm (W) × 100mm (D) × 28mm (H)
Receiver: 88mm (W) × 61mm (D) × 18mm (H)
Weight Weight Transmitter: 823g Receiver:155g
Power Supply Input: AC100 – 240V 50/60Hz
Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified)
Power Consumption 25.44W
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20%~90% RH (non-condensing)
Click here to download datasheet
