HDMI Splitter 1×8 V2.0 4K60HZ

SKU: AHDSP-V2018
Brand: Asuka

18Gbps 1×8 HDMI Splitter is an advanced solution for splitting single HDMI signal to 8 HDMI outputs synchronously. It supports up to 18Gbps bandwidth, HDMI 2.0b/HDCP 2.2 content up to 4K@60Hz 4:4:4. It can be set the COPY/ AUTO EDID configuration. Supporting the latest features you can be assured of reliable and high quality HDMI distribution.

  • HDMI 2.0b, HDCP 2.2 compliant
  • Supports 18Gbps bandwidth
  • Supports resolution up to 4K@60Hz 4:4:4
  • Supports HDR function
  • Supports COPY/AUTO EDID control via dialling the dip switch
  • Compact design for easy and flexible installation
Download Datasheet

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
Video Bandwidth 594MHz/18Gbps
Video Resolution 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz
HDMI Audio Formats PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1,
Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio,
Dolby Atmos and DTS:X
ESD Protection Human body model—±8kV (Air-gap discharge) &
±4kV (Contact discharge)
Connections
Input Ports 1×HDMI Type A (19-pin female)
1×SERVICE (Micro USB, Update port)
Output Ports 8×HDMI Type A (19-pin female)
Mechanical
Housing Metal Enclosure
Color Black
Dimensions 243mm (W) × 102mm (D) × 16mm (H)
Weight 572g
Power Supply Input: AC100 – 240V 50/60Hz
Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption 6.15W
Operating Temperature -10°C ~ 50°C / 14°F ~ 122°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20%~90% (non-condensing)

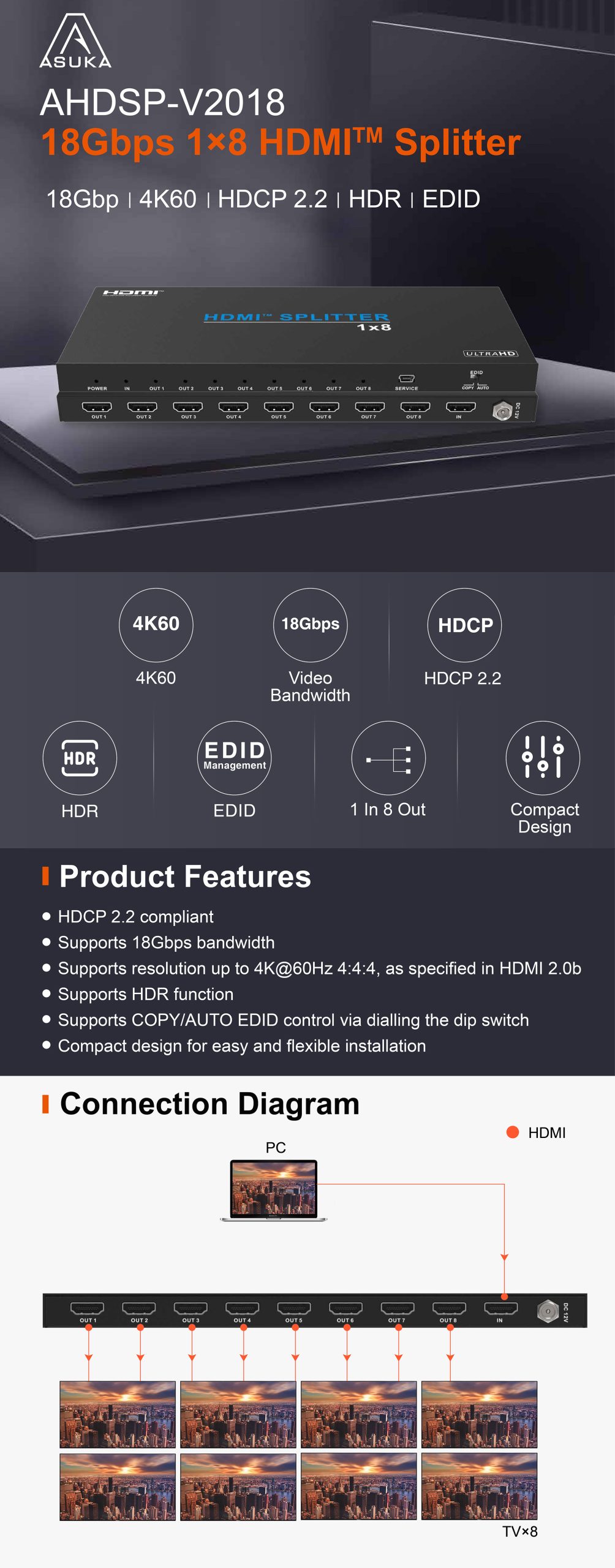

Click here to download datasheet
