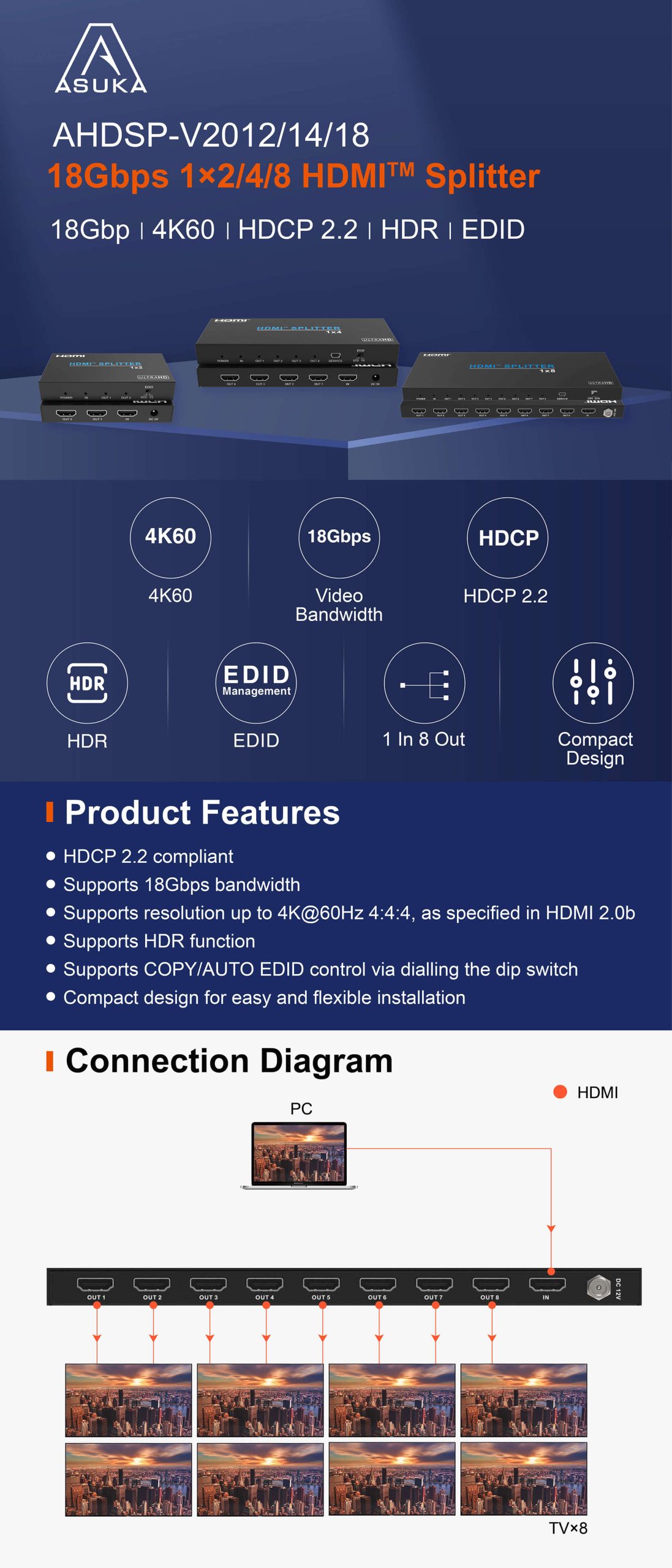

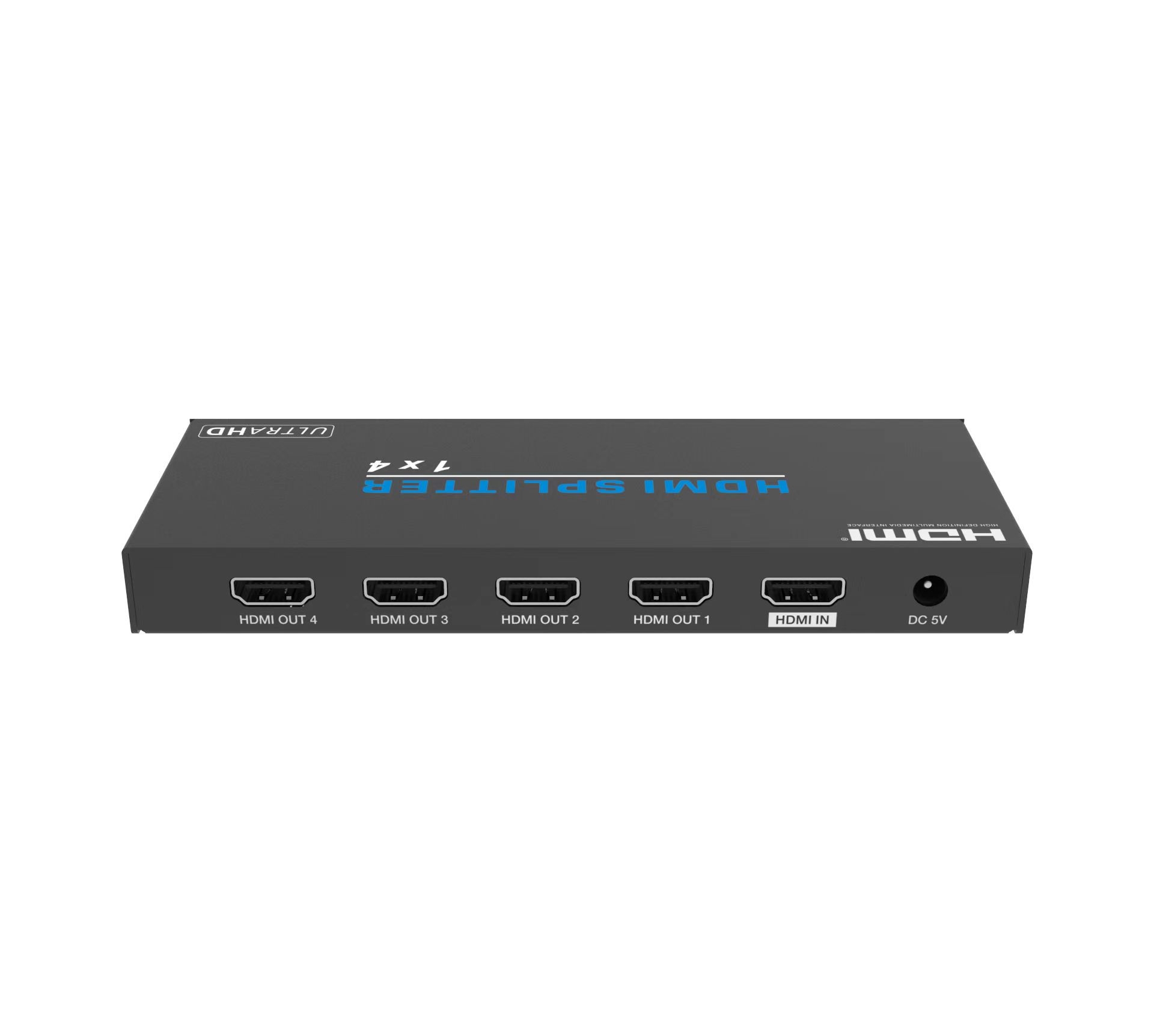

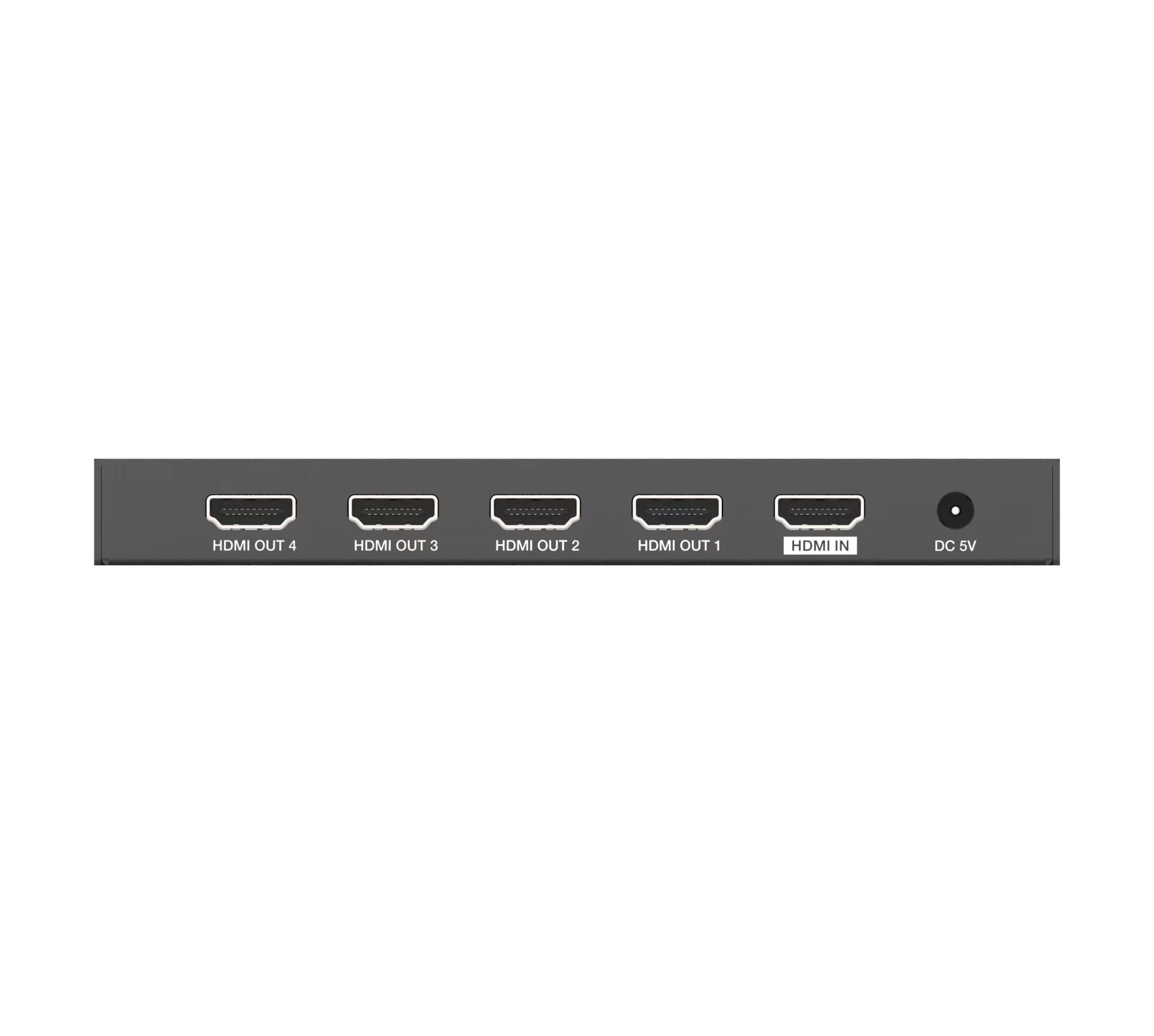

HDMI Splitter 1×4 V2.0 4K60HZ

SKU: AHDSP-V2014
Brand: Asuka

This 1×4 HDMI 18Gbps Splitter is an advanced solution for splitting a single HDMI signal to 4 HDMI displays. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz 4:4:4 and is capable of receiving and transmitting up to 18Gbps of bandwidth with no data loss.(Supporting the latest features you can be assured of reliable and high quality HDMI distribution.)

  • HDMI 2.0b, HDCP 2.2 compliant
  • Supports video format up to 4K2K@60Hz with 8 bit RGB/YCBCR 4:4:4/YCBCR 4:2:2
  • Support 3D frame sequential video format up to 1080p@60
  • Supports 3D frame sequential video format up to 4K2K@30Hz
  • Supports high resolution VESA mode video format up to QSXGA@60Hz
  • Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
  • Supports smart EDID control
  • Compact design for an easy and flexible installation

Technical
Video Bandwidth 600MHz/18Gbps
Input Ports 1×HDMI Type A[19-pin female]
Output Ports 4×HDMI Type A[19-pin female]
Output Resolution 480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz
ESD Protection Human Body model: ±8kV (Air-gap discharge) ,
±4kV (Contact discharge)
Power Supply 5V/1A DC (US/EU standards,CE/FCC/UL certified)
Dimensions 63mm (W) × 163mm (D) × 16mm (H)
Weight 260g
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)
Power Consumption 2W

HDMI Splitter 1x4 V2.0 4K60HZ:
