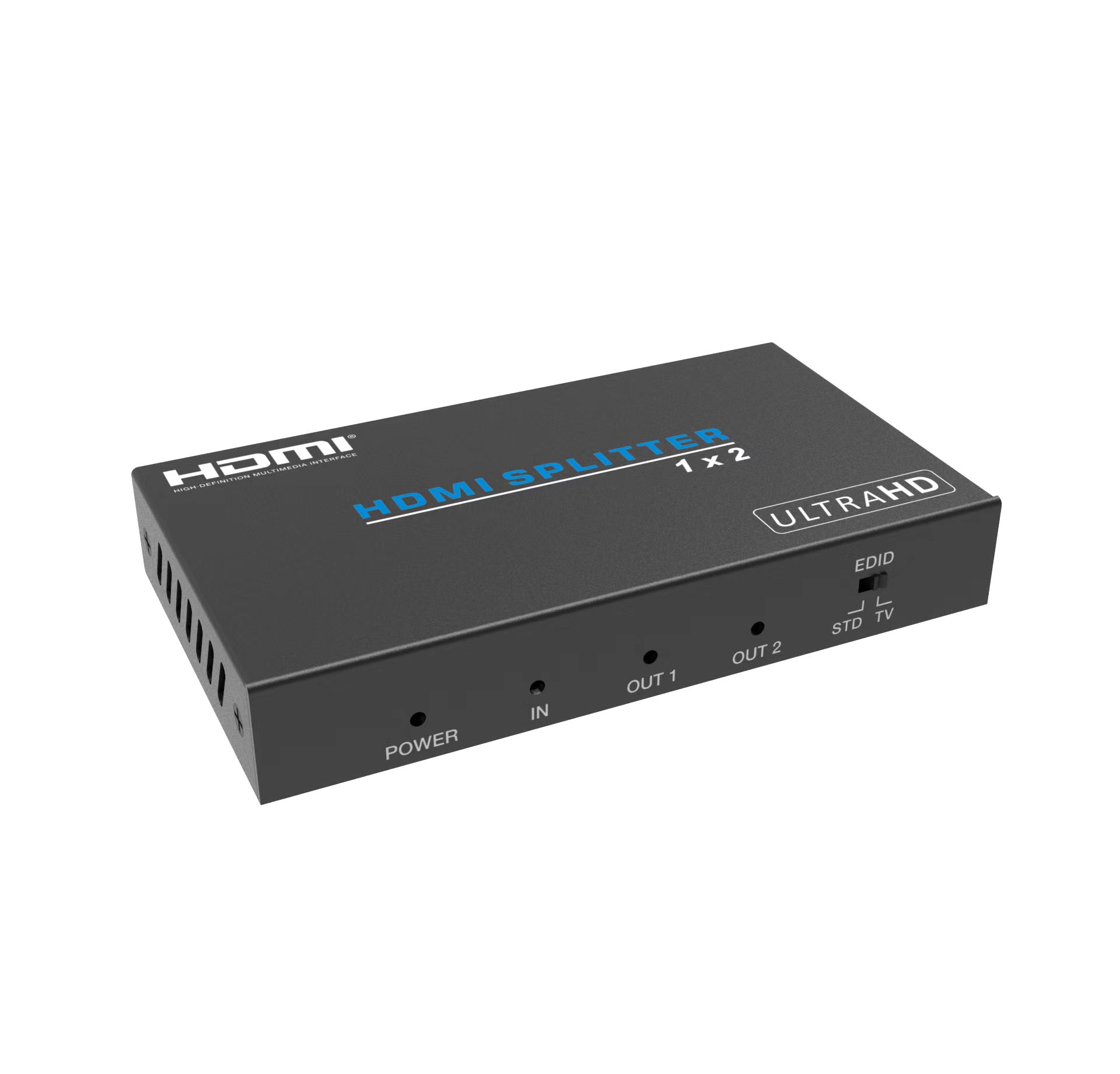

HDMI Splitter 1×2 V2.0 4K60HZ

SKU: AHDSP-V2012
Brand: Asuka

This 1×2 HDMI Splitter is an advanced solution for splitting an HDMI content to 2 HDMI outputs synchronously. It provides high performance audio and video up to 4K2K@60Hz (4:4:4) and is capable of receiving, retiming and transmitting up to 18Gbps of bandwidth with no data loss.

  • HDCP 2.2 compliant
  • Video resolution up to 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4, as specified in HDMI 2.0b
  • VESA format up to QSXGA@60Hz
  • Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
  • Built-in equalizer, retiming and driver
  • Smart EDID, STD(1080p) mode and TV(copy OUT1) mode
  • Compact design for an easy and flexible installation

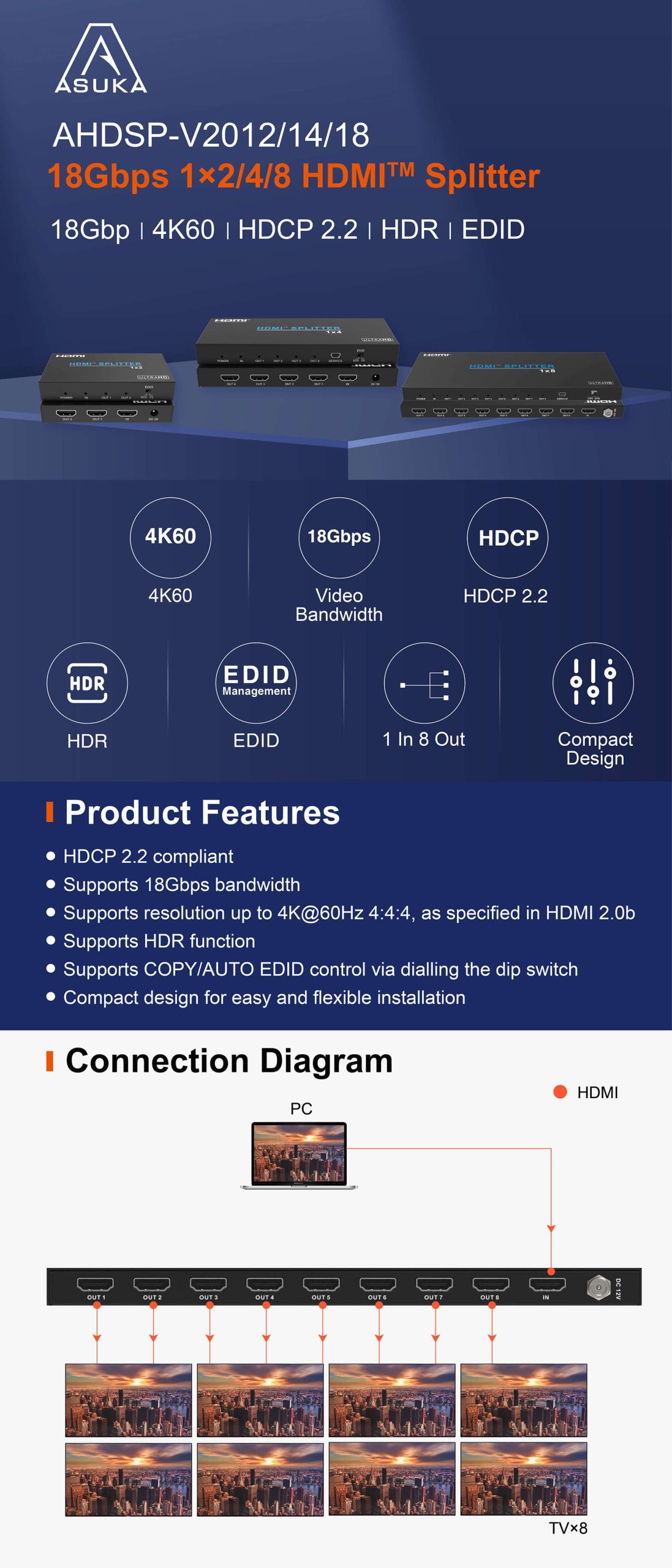

Download Datasheet

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
Video Bandwidth 600MHz/18Gbps

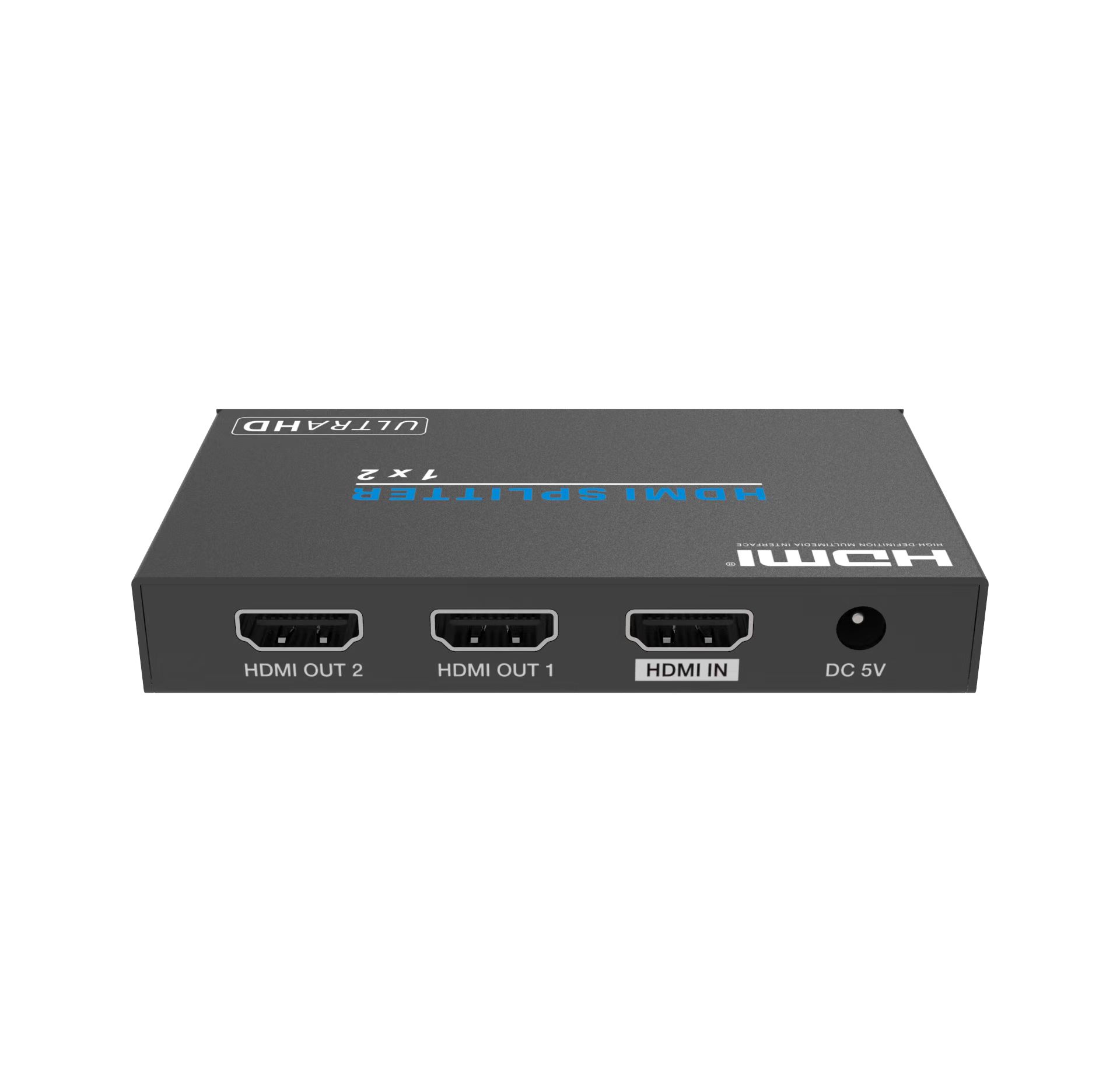

Input Port 1×HDMI Type A (19-pin female)
Output Port 2×HDMI Type A (19-pin female)
Video Resolution 4K2K@24/25/30/60Hz
ESD Protection IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Mechanical
Housing Metal Enclosure
Color Black
Dimensions 56mm (W) × 100mm (D) × 16mm (H)
Weight 165g
Power Supply Input: AC100 – 240V 50/60Hz
Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption 2W
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Operating Humidity 20%~80% (relative humidity, non-condensing)
Storage Humidity 10%~90% (relative humidity, non-condensing)
Click here to download datasheet
