HDMI Optical Fiber Extender with Audio Extracting

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	18Gbps
Video Resolution	480i ~ 1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz
Color Space	RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
Color Depth	8/10/12-bit (1080P60Hz) 8-bit (4K60Hz)
HDMI Audio Formats	LPCM2/5, 1/7.1CH, Dolby Digital/Plus/EX, Dolby Trye HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Transmission Distance	Up to 3300 feet/1000 meters over single-mode fiber cable Up to 1000 feet/300 meters over multi-mode fiber cable
IR Frequency	20KHz~60KHz
RS-232 Baud Rate	4800~115200bps
ESD Protection	Human body model – ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection

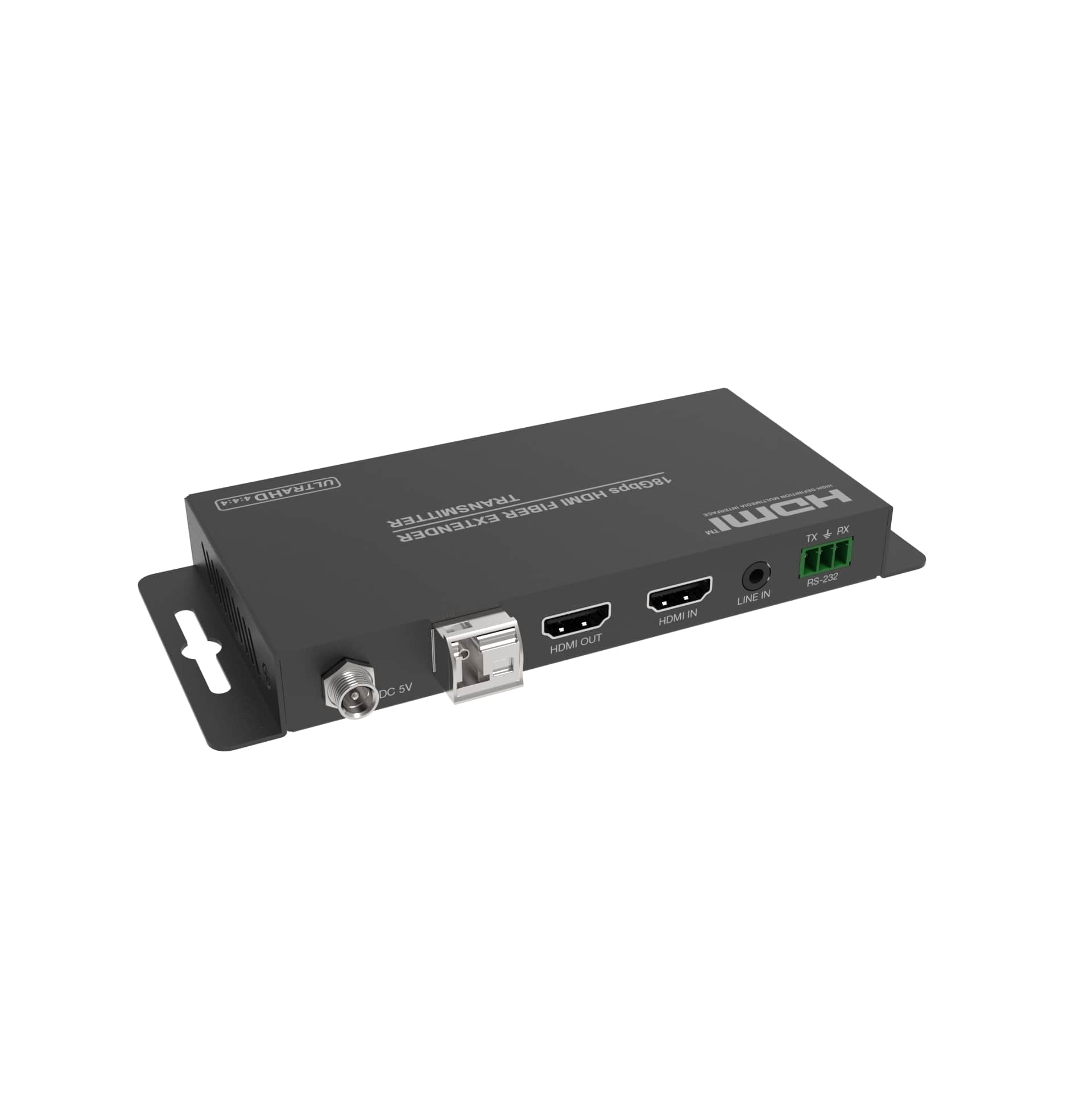

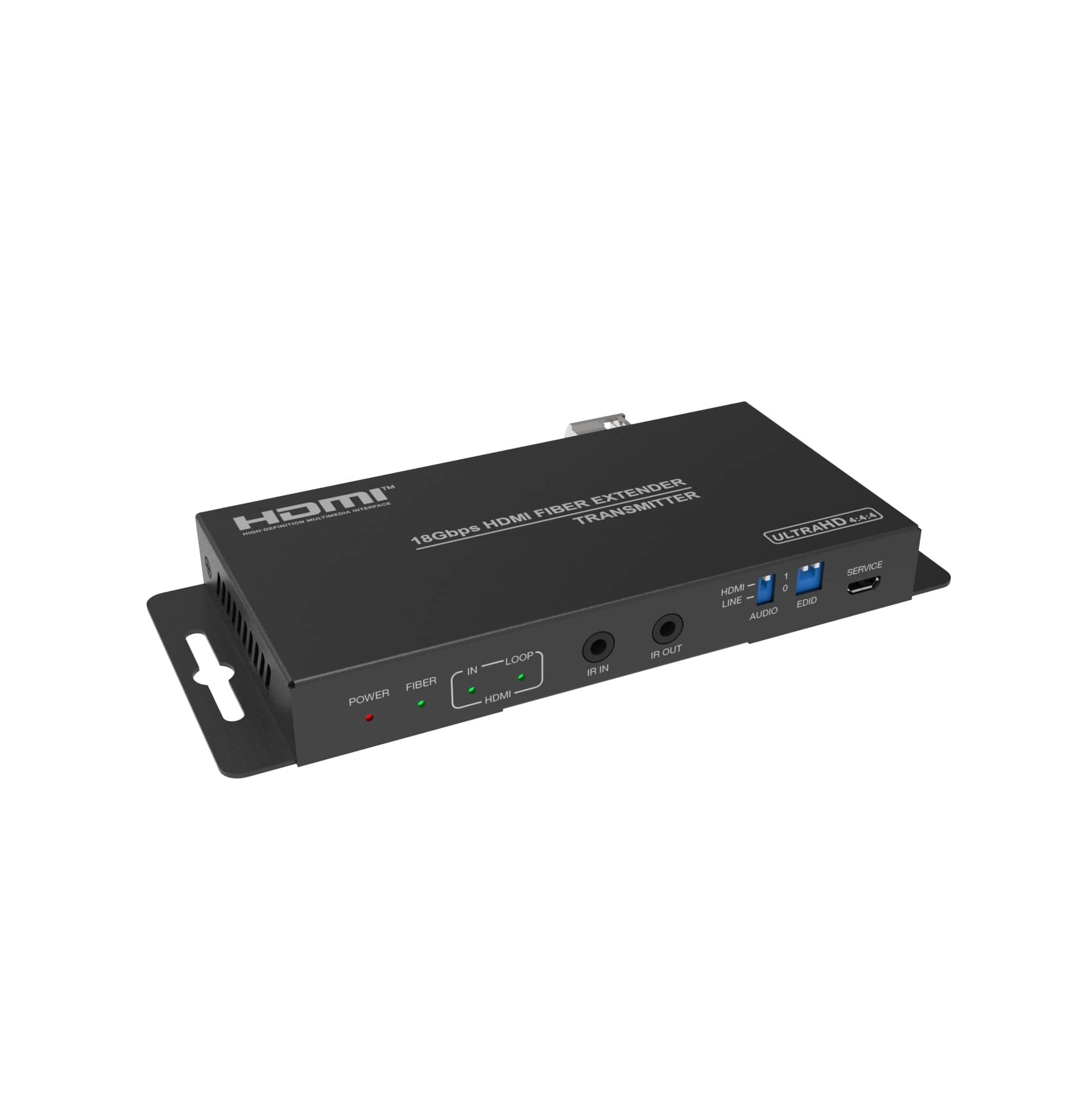

Transmitter	Input: 1 x HDMI IN (Type A 19-pin female) 1 x LINE IN (3.5mm Stereo Mini-jack) 1 x IR IN (3.5mm Stereo Mini-jack) 1 x RS-232 (3.81mm Phoenix connector) 1 x SERVICE (Micro USB, Update port)Output: 1 x HDMI OUT (Type A 19-pin female) 1 x Optical Fiber Out (LC female) 1 x IR OUT (3.5mm Stereo Mini-jack)

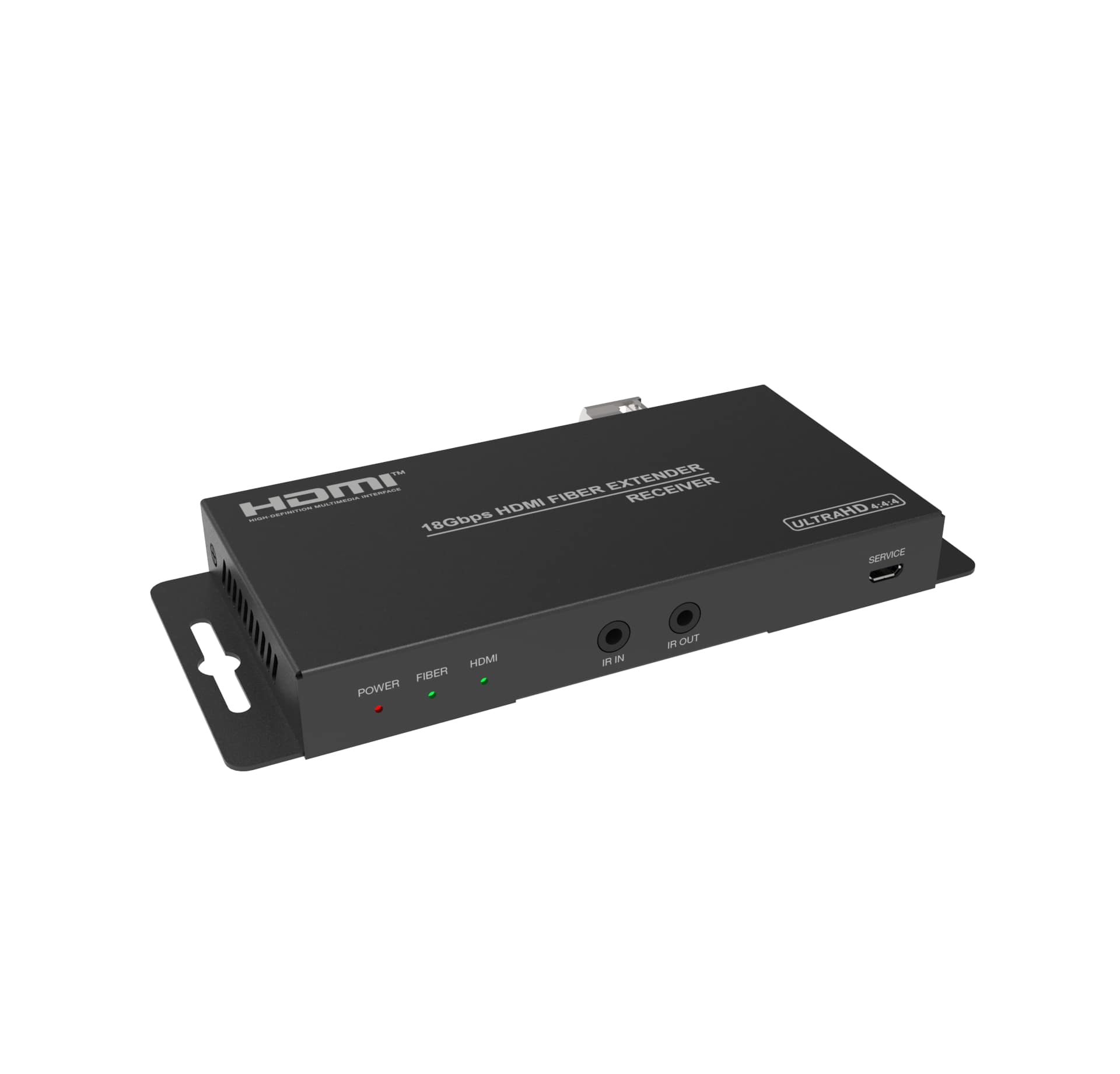

Receiver	Input: 1 x Optical Fiber In (LC female) 1 x IR IN (3.5mm Stereo Mini-jack) 1 x SERVICE (Micro USB, Update port)Output: 1 x HDMI OUT (Type A 19-pin female) 1 x RS-232 (3.81mm Phoenix connector) 1 x IR OUT (3.5mm Stereo Mini-jack) 1 x AUDIO OUT (3.5mm Stereo Mini-jack)
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	Transmitter / Receiver 134mm (W) x 68mm (D) x 18mm (H)
Weight	Transmitter: 280g, Receiver: 278g
Power Supply	Input: AC 100 ~ 240V 50/60Hz Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption	Transmitter: 3.85W (Max), Receiver: 2.7W (Max)
Operating Temperature	32 ~ 104°F / 0 ~ 40°C
Storage Temperature	-4 ~ 140°F / -20 ~ 60°C
Relative Humidity	20 ~ 90% RH (no condensation)
