HDMI MATRIX 8 X 8 WITH AUDIO

SKU: AHDMX-V2088A
Brand: Asuka

The 18Gbps 8×8 HDMI Matrix supports the transmission of video (up to 4K2K@60Hz YUV 4:4:4) and multi-channel high resolution digital audio from 8 HDMI sources to 8 HDMI displays. Audio de-embedded to analog and coaxial audio is supported from 8 HDMI output ports. While HDMI output ARC function is enabled, the ARC audio from HDMI display devices will be extracted to coaxial audio output. Each HDMI output of this 8×8 HDMI Matrix supports 4K2K to 1080P downscaler independently. Control is via front panel buttons, IR remote, RS-232, LAN and Web GUI.

  • HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
  • Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports
  • Support 18Gbps video bandwidth
  • Dolby Vision, HDR10+ and HLG are supported.
  • Support 4K->1080P Down Scaler for each output port
  • HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
  • Audio de-embedded is supported via analog and coax ports
  • ARC, CEC and smart EDID management are supported
  • 1U rack mounted design with front panel OLED display
  • Control via front panel buttons, IR remote, RS-232, LAN and Web GUI



Download Datasheet

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2 and HDCP 1.4
Video Bandwidth 18Gbps
Video Resolution Up to 4K2K@50/60Hz (4:4:4)
Color Space RGB, YCbCr 4:4:4/4:2:2/4:2:0
Color Depth 8-bit, 10-bit, 12-bit
HDMI Audio Formats
(Pass-through)		 LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Coax Audio Formats LPCM 2.0, Dolby Digital / Plus, DTS 5.1
L/R Audio Formats PCM2.0
HDR Support HDR10,HDR10+,Dolby Vision, HLG
ESD Protection Human Body model – ±8kV (Air-gap discharge), ±4kV (Contact discharge)

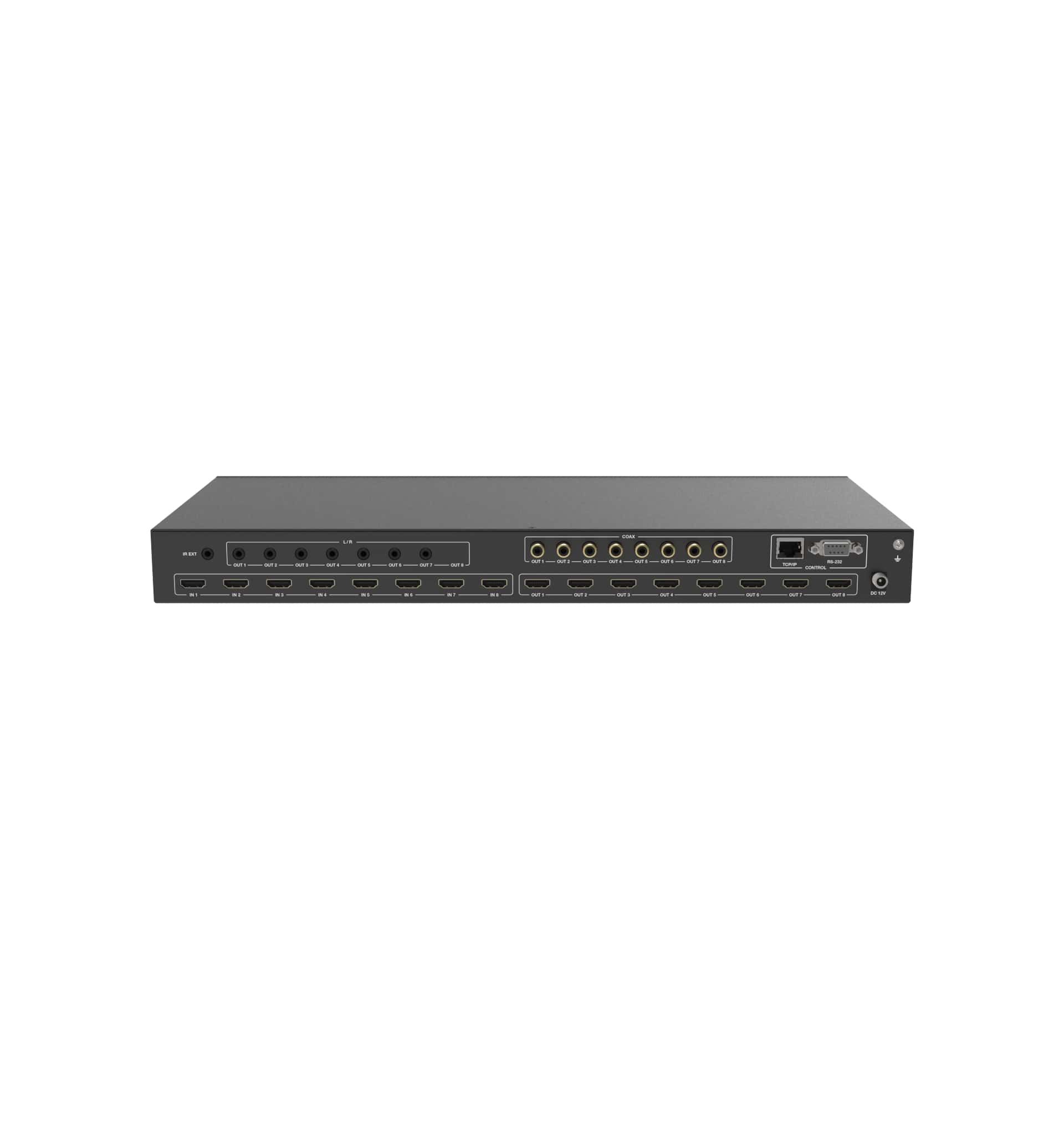

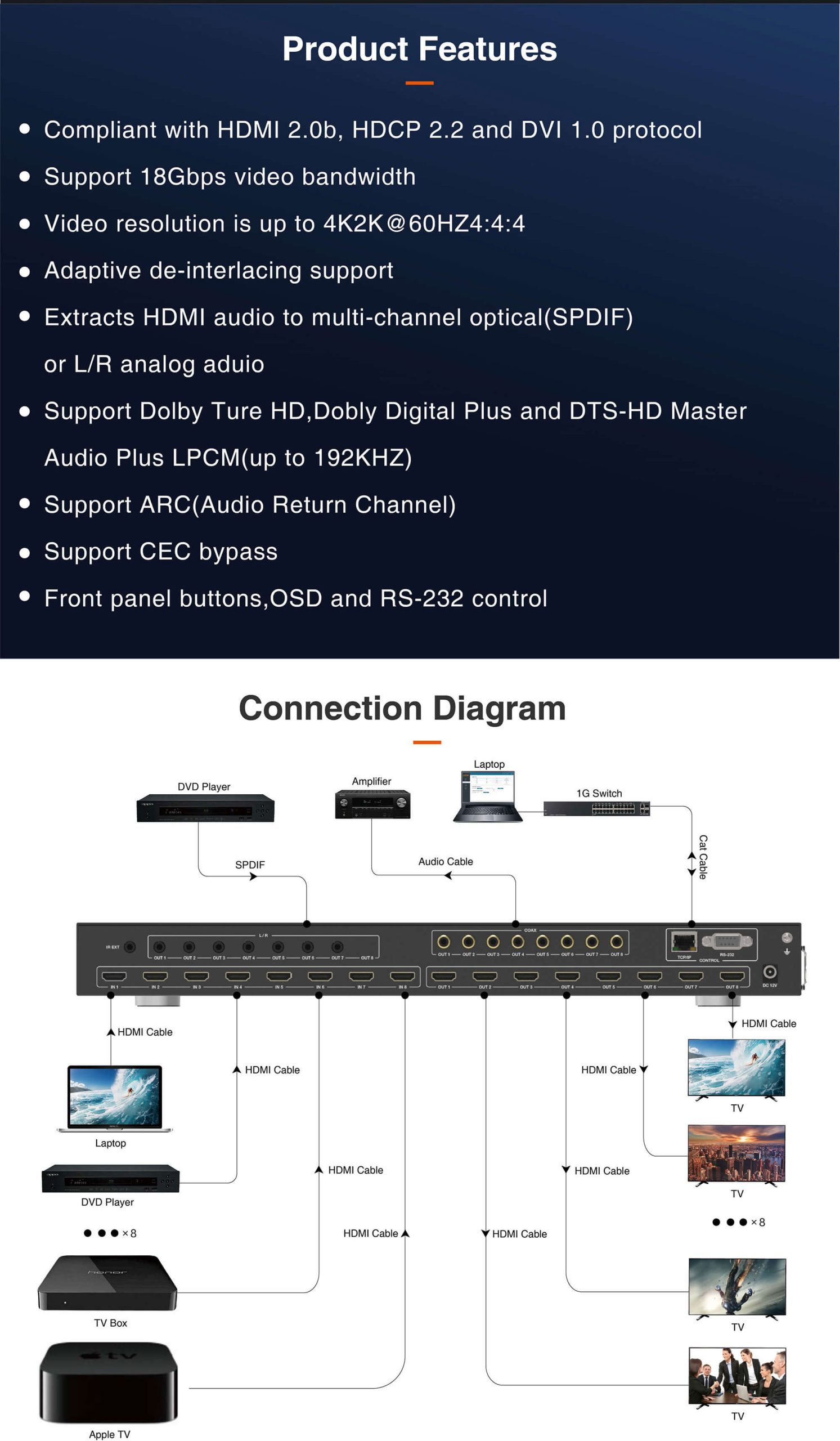

Connection
Input Ports 8×HDMI Type A [19-pin female]
1×IR EXT [3.5mm Stereo Mini-jack]
Output Ports 8×HDMI Type A [19-pin female]
8×Coax Audio (RCA)
8×L/R Audio [3.5mm Stereo Mini-jack]
Control Ports 1×TCP/IP [RJ45]
1×RS-232 [D-Sub 9]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions 440mm (W) × 200mm (D) × 44.5mm (H)
Weight 2.8kg
Power Supply Input: AC 100 – 240V 50/60Hz
Output: DC 12V/5A (US/EU standard, CE/FCC/UL certified)
Power Consumption 43W
Operating Temperature -10°C ~ 45°C / 14°F ~ 113°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20%~90% RH (non-condensing)
Resolution / Cable Length
HDMI IN / OUT 4K60 – Feet / Meters
16ft / 5M4K30 – Feet / Meters
32ft / 10M

1080P60- Feet / Meters
50ft / 15M
The use of ” Premium high Speed HDMI cable is highly recommended.
Click here to download datasheet
