HDMI MATRIX 4 x 4 Seamless with video wall

SKU: AHDMX-V2044SL
Brand: Asuka

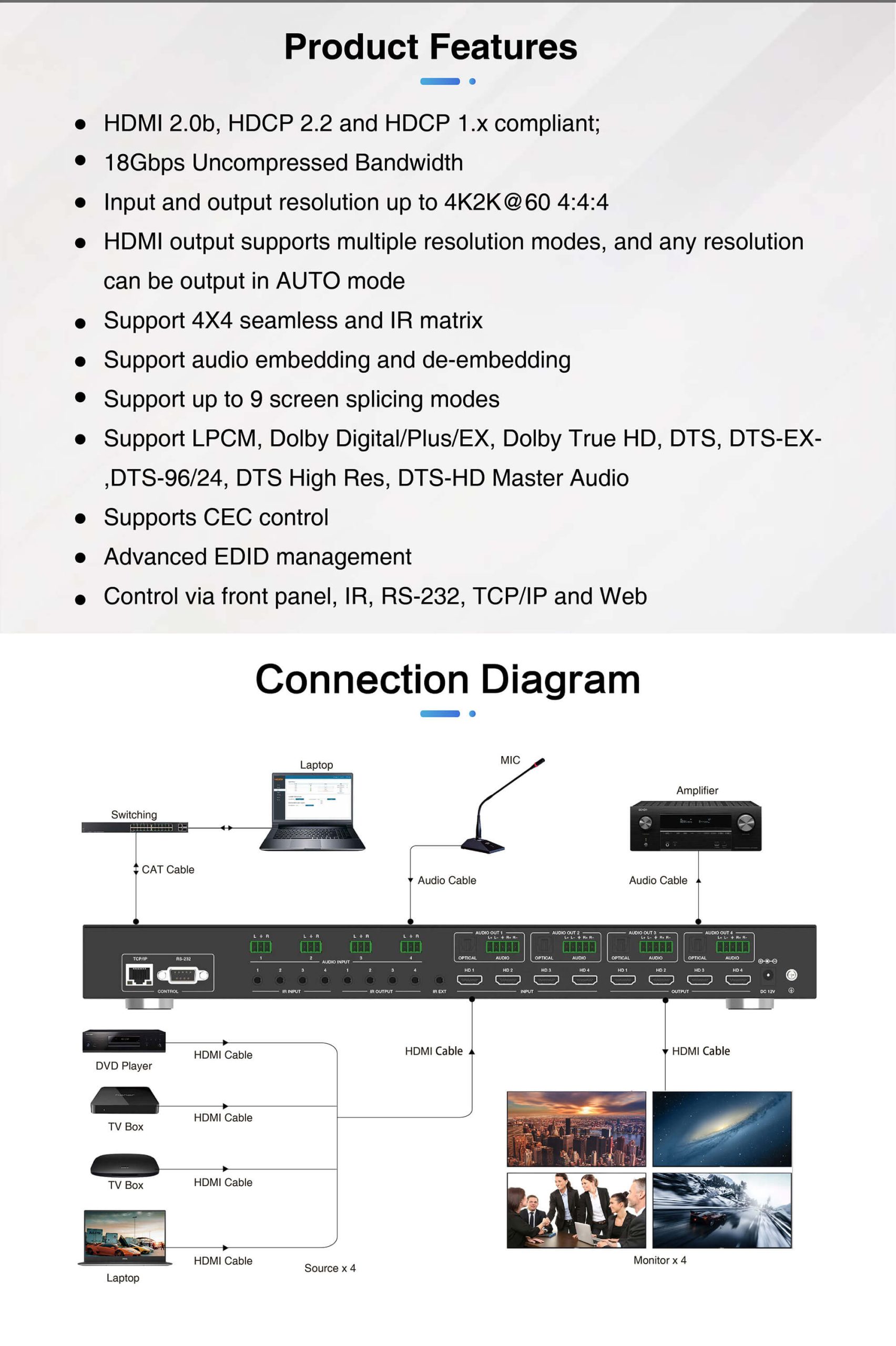

The 18Gbps 4×4 seamless UHD Matrix can connect 4 HDMI sources to 4 HDMI displays. Supported video resolution is up to 4K60 4:4:4. The product supports IR matrix and Audio matrix. IR matrix routing follows the video routing. Audio extract and insert are supported. The product supports CEC management and strong video wall processing.

  • HDMI 2.0 and HDCP 2.2 compliant
  • Support 18 Gbps video bandwidth
  • Support video resolution up to 4K60 4:4:4
  • Color space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
  • Support seamless switching, video wall function
  • Support CEC management
  • Support audio matrix and IR matrix function
  • Support external L/R audio insert on HDMI stream
  • Support EDID management

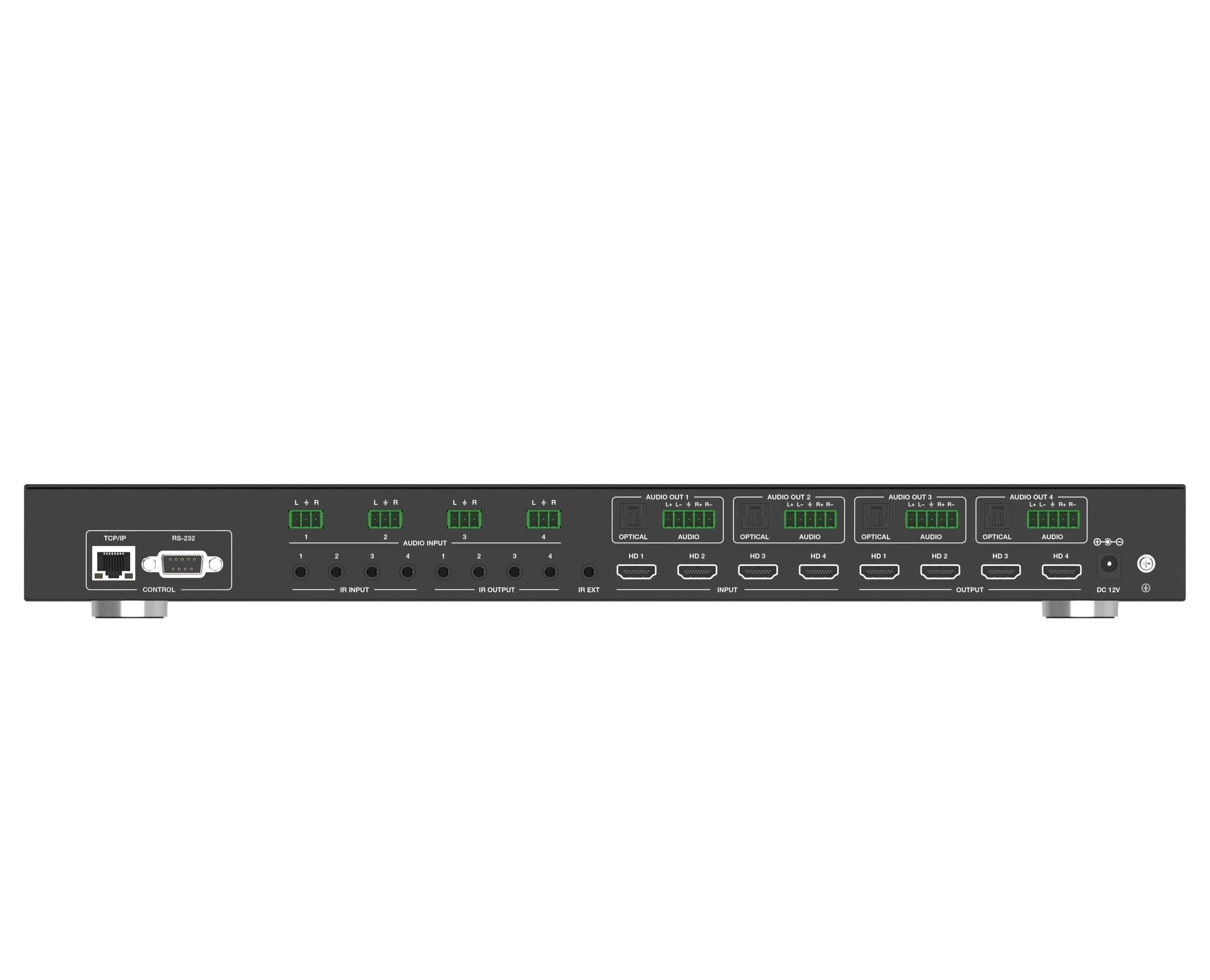

  • Support front panel, RS232, TCP/IP (LAN 10M/100M) control

Technical
HDMI Compliance HDMI 2.0
HDCP Compliance HDCP 2.2
Video Bandwidth 18Gbps
Video Resolution Up to 4K60 4:4:4
Color Space RGB, YCbCr 4:4:4 / 4:2:2
HDMI Amplitude T.M.D.S +/- 0.4Vpp
Differential Impedance 100±15ohm
ESD Protection Human body model – ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
RS232 / Ethernet Control
Baud rate and Protocol Baud rate: 9600, Data bit: 8
Stop bit: 1, no parity checking
Ethernet IE10.0+, HTML5
Mechanical
Housing Metal Enclosure
Color Black
Dimensions 430mm (W) x 220mm (D) x 44mm (H)
Weight 5Kg
Power Supply AC 100 ~ 240V
Power Consumption 60W (Max)
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 70°C / -4°F ~ 158°F
Relative Humidity 10 ~ 50% RH (non-condensing)
