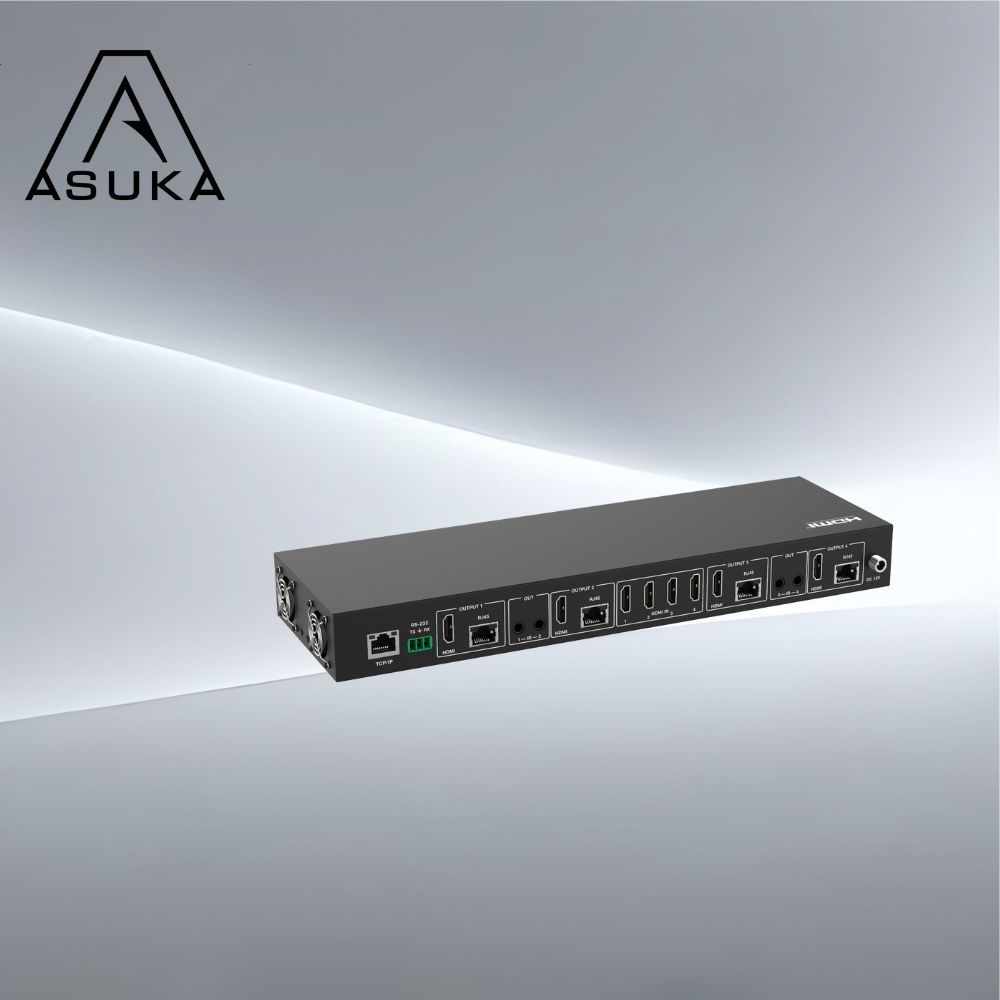

HDMI MATRIX 4 x 4 (70M)

SKU: AHDMX-V2044C
Brand: Asuka

The 18Gbps 4×4 HDMI Matrix can connect four HDMI sources to eight displays. It features four HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously. It supports the transmission of video (resolution is up to 1080p Full HD and 4Kx2K@60Hz 4:4:4) and supports HD digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. Connect a CAT Receiver to each of the CAT-Cable outputs to extend the HDMI signal up to 230ft/70m for multi-room connectivity. Each HDMI output supports 4K2K to 1080P downscaler independently. The product supports control via front panel buttons, IR remote, RS-232, LAN, and Web GUI.

  • HDMI 2.0b and HDCP 2.2/1.x compliant
  • Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & CAT ports
  • 4 HDMI inputs, 4 HDMI & CAT mirrored outputs
  • HDMI ports support 18Gbps lossless uncompressed video bandwidth
  • Support 4K->1080P Down Scaler for each output port
  • HDR, HDR10, HDR10+, Dolby Vision, HLG are supported
  • CAT output can extend the transmission distance up to 230ft/70m via a single CAT6 cable
  • HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
  • Advanced EDID management and CEC control are supported
  • 12V POC on all CAT ports
  • Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
Download Datasheet
Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2/1.x
Video Bandwidth 18Gbps
Video Resolution Up to 4K2K@50/60Hz (4:4:4)
Color Space RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
Color Depth 8-bit, 10-bit, 12-bit (1080p@60Hz)
8-bit (4K2K@60Hz YUV4:4:4)
8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0）
HDR HDR HDR10, HDR10+, Dolby Vision, HLG
HDMI Audio Formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master,
DTS HD-HRA, DTS-X
Transmission Distance 230ft / 70m (via a single CAT6 cable)
ESD Protection Human Body model – ±8kV (Air-gap discharge), ±4kV (Contact discharge)

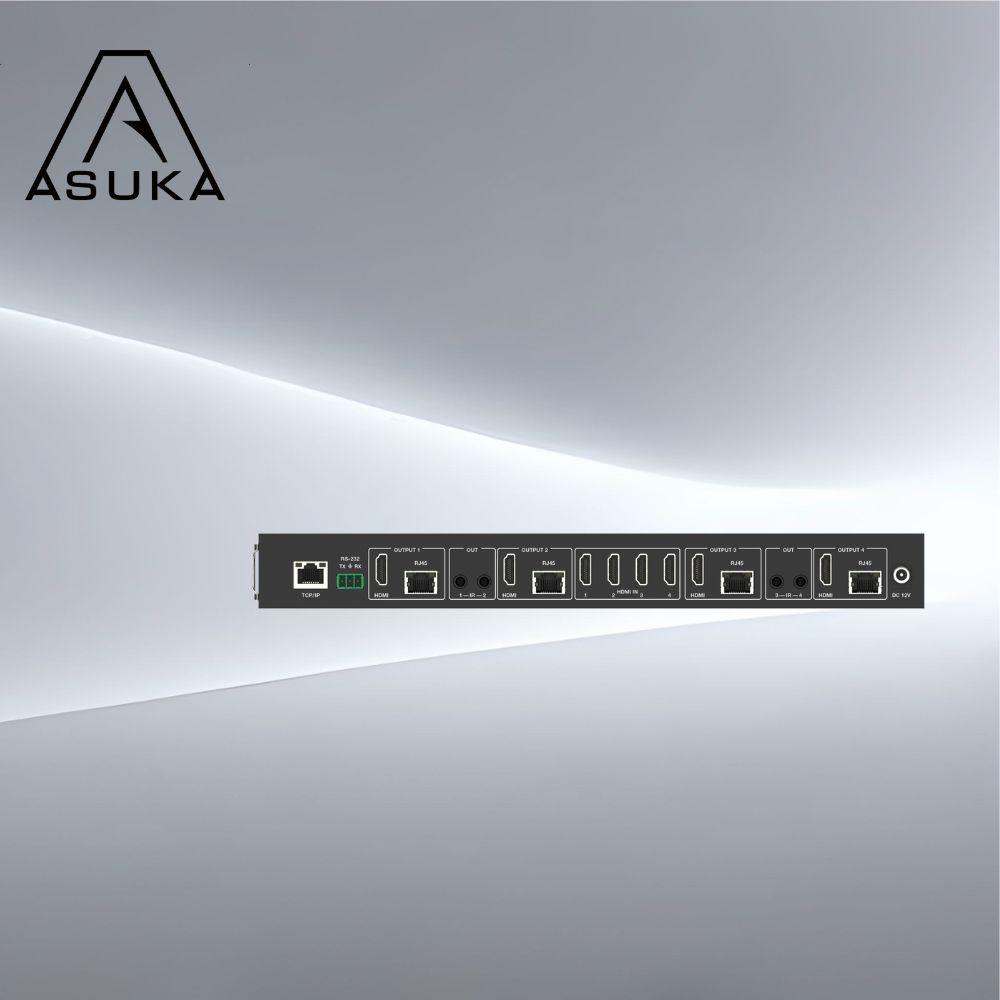

Connection
Matrix Inputs:
4 x HDMI Type A [19-pin female]Outputs:
4 x HDMI Type A [19-pin female]
4 x CAT port [RJ45]
4 x IR OUT [3.5mm Stereo Mini-jack]

Controls:
1 x TCP/IP [RJ45]
1 x RS-232 [3-pin phoenix connector]
CAT Receiver Inputs:
1x IR IN [3.5mm Stereo Mini-jack]
1x CAT port [RJ45]Output:
1x HDMI Type A [19-pin female]Control:
1x SERVICE [Micro USB, Update port]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions Matrix: 320mm (W) × 100mm (D) × 36mm (H)
Receiver: 61mm (W) x 88mm (D) x 18mm (H)
Weight Weight Matrix: 915g, Receiver: 155g
Power Supply Input: AC 90 – 260V 50/60Hz
Output: DC 12V/2.5A
(US/EU standards, CE/FCC/UL certified)
Power Consumption 19.68W (Max)
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20%~90% RH (non-condensing)
Resolution / Cable Length
HDMI IN / OUT 4K60 – Feet / Meters
16ft / 5M4K30 – Feet / Meters
32ft / 10M

1080P60- Feet / Meters
50ft / 15M
The use of ” Premium high Speed HDMI cable is highly recommended.
