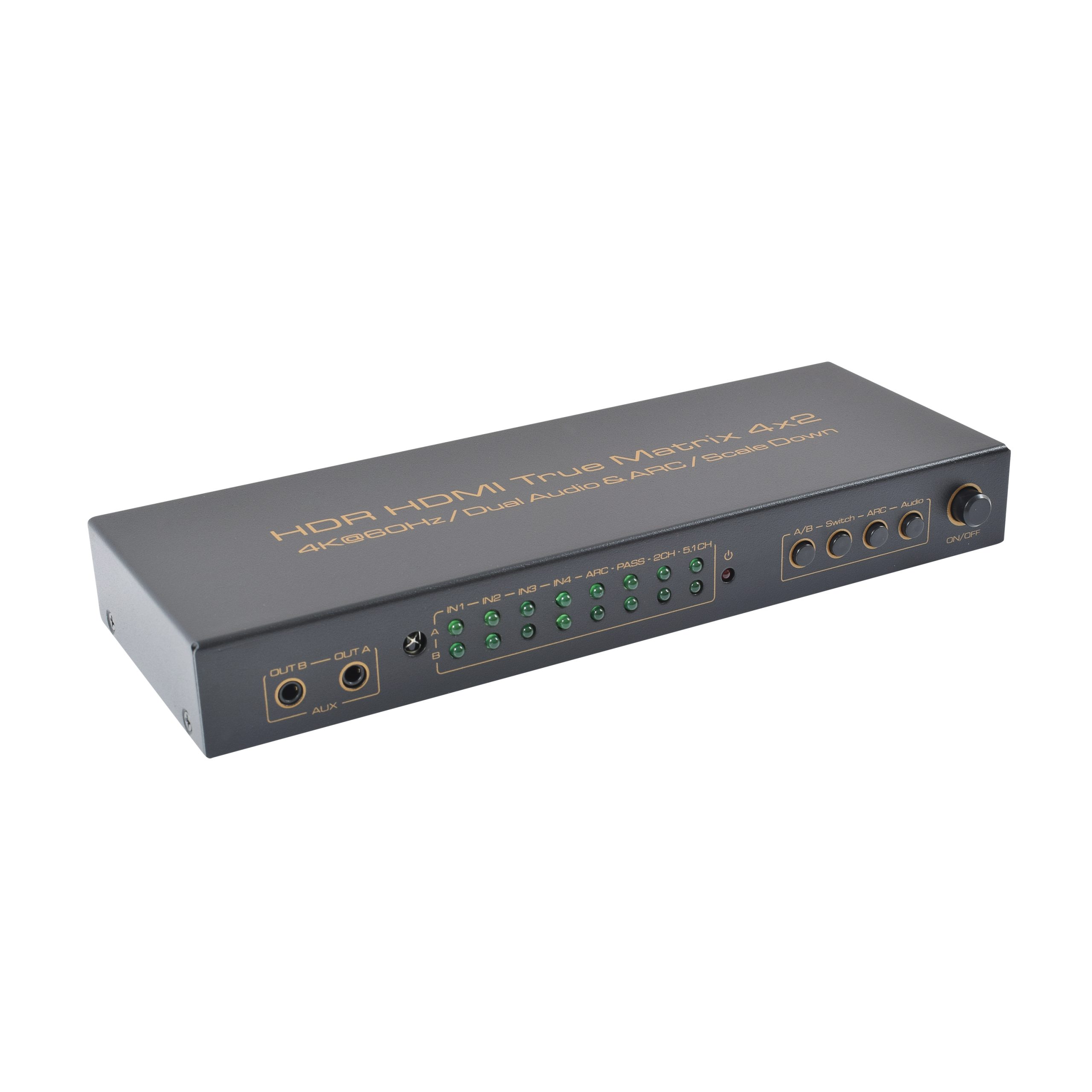

HDMI MATRIX 4 X 2 WITH AUDIO

SKU: AHDMX-V2042
Brand: Asuka

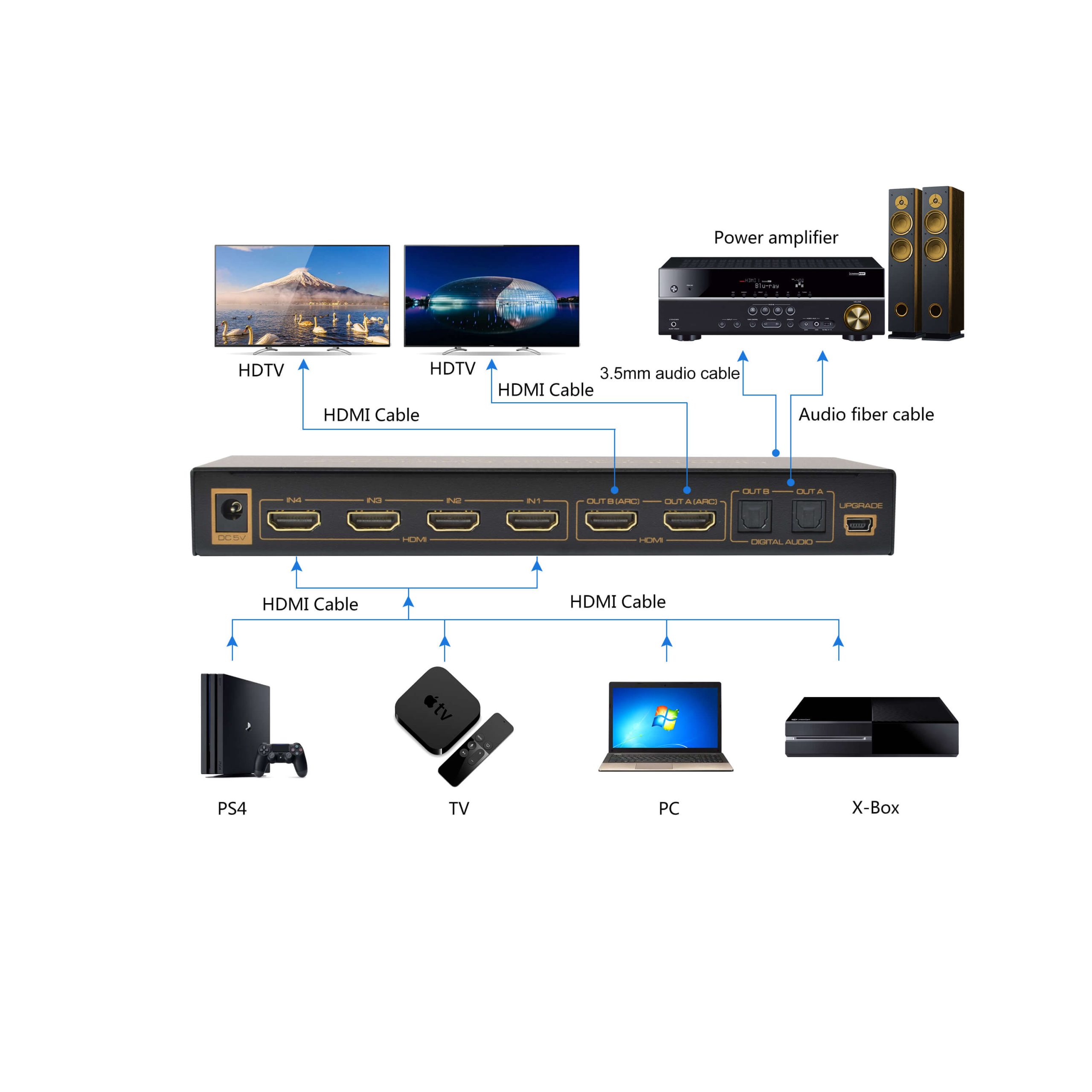

The 4×2 HDMI Matrix can use four HDMI sources to four HDMI sinks. The matrix allows four HDMI devices to be switched or split easily to four HDMI compatible monitors or projectors. The Matrix can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

  • Four HDMI input signals switched or split to four HDMI sink devices
  • Support CEC
  • Support deep color 30bit, 36bit
  • Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
  • Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Download Datasheet

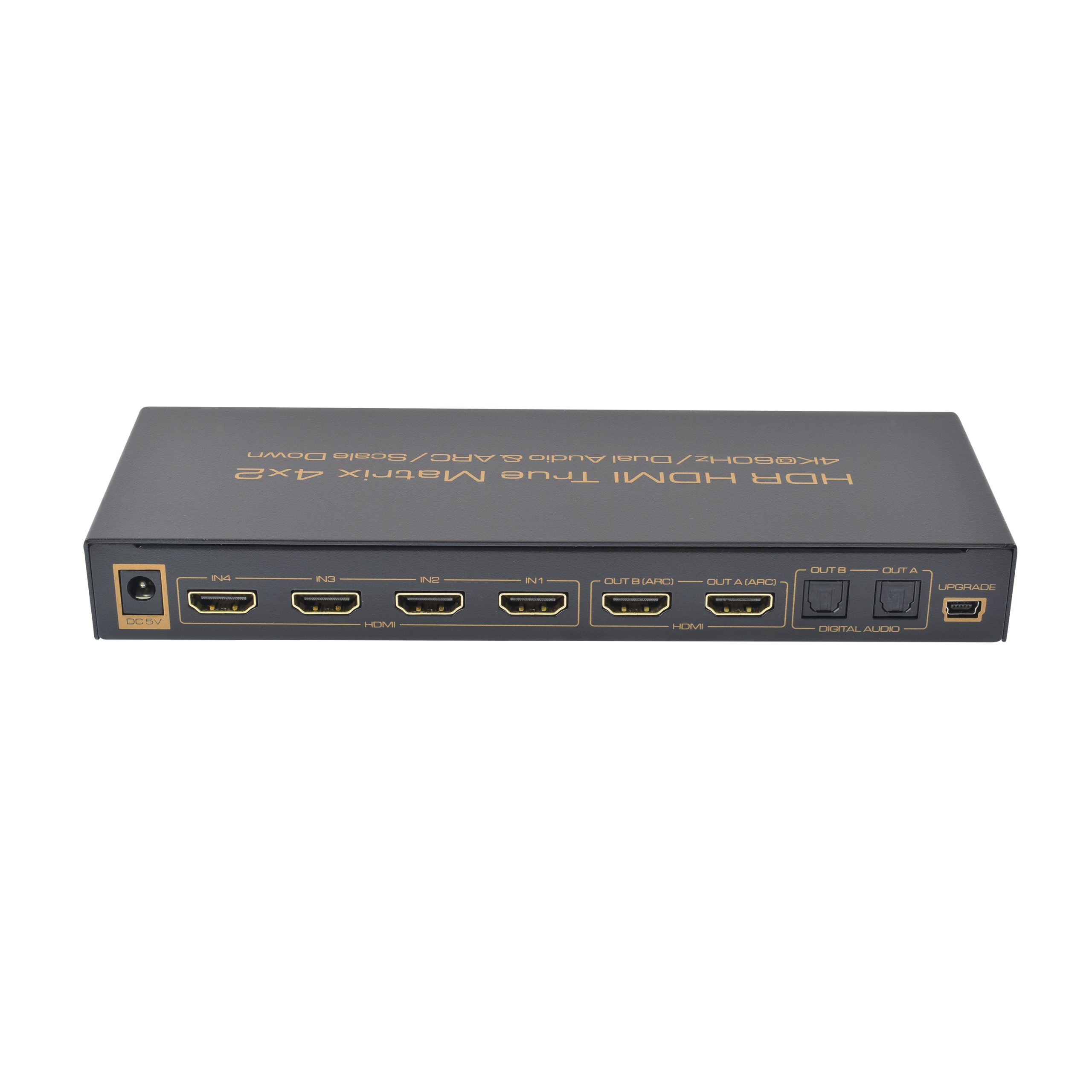

Input ports HDMIx4
Output ports HDMIx2, Opticalx2, AUX x2
Video format 480i/480P/576i/720P/1080P/2160P
(Supports HDR/Dolby Vision)
Depth color 8/10/12Bit@480P/720P/1080P 8Bit@2160P
Audio format Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM Etc.
Transmission bandwidth 25~600MHz
Transmission rate 0.75~18Gbps
Analog output level 2V RMS (1kHz@0dB)
Input cable length 2160P/AWG 26 ≤ 4m, 1080P/AWG 26 ≤ 10m
Output cable length 2160P/AWG 26 ≤ 5m, 1080P/AWG 26 ≤ 12m
Power adapter specification Input: AC 100~240V Output: DC 5V/1A
Max working current 500mA
Working temperature range -5 ~ +40℃
Working humidity range 5 to 85% RH (No Condensation)
Storage temperature -15 to 55℃
Storage humidity 5 to 95% RH (No Condensation)
Size 250 x 75 x 30 (mm)
Weight 440g
Accessories Manual, Remote, Power Adaptor
Click here to download datasheet
