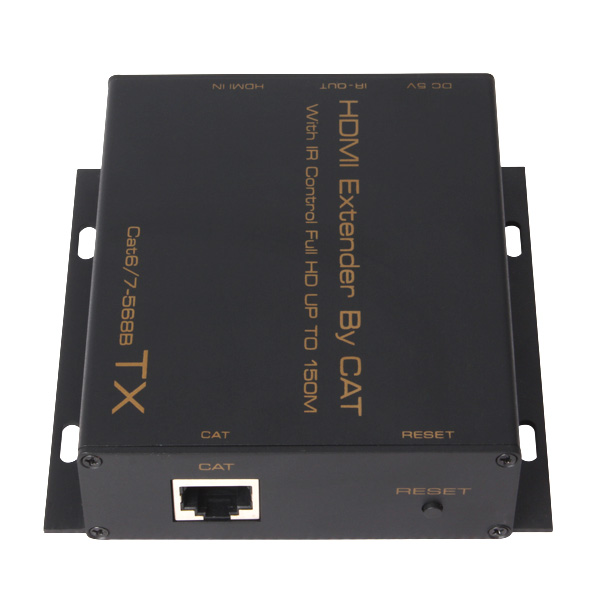

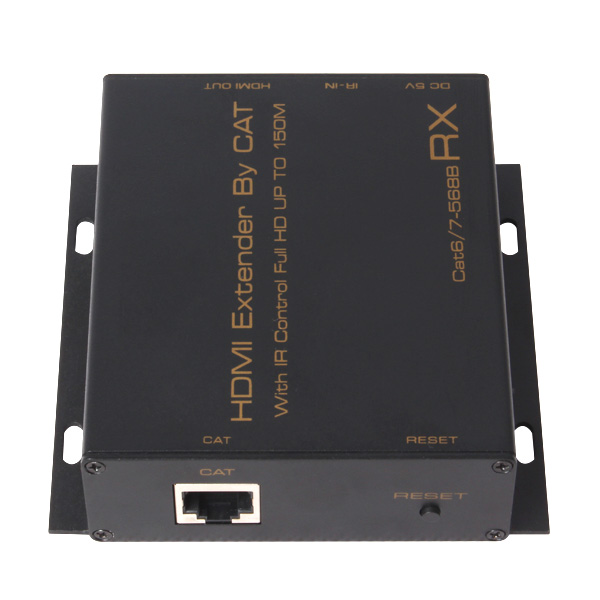

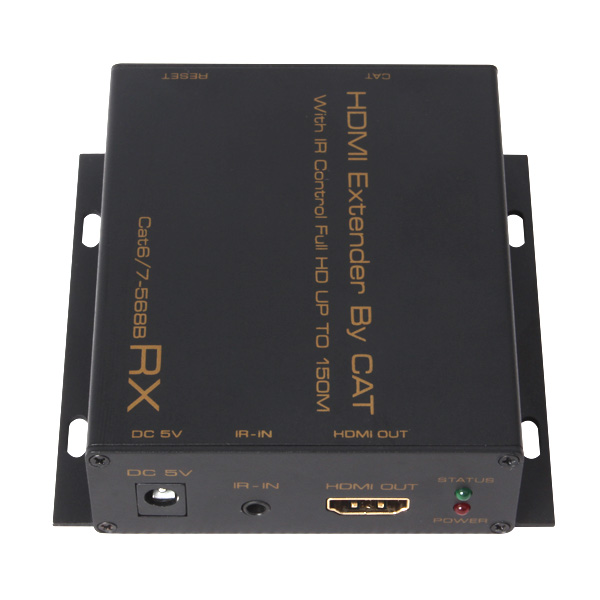

HDMI Extender (150m) with ip

The extender uses one piece of standard CAT6/7 (cable length max up to 150M) to transmit the HD Signal from the DVD, HD Player, PC and other HD source set to the Display at distance; It follows the TCP/IP protocol to send the HD Video by the local area network; It supports one sender to multi receivers and Cascade connection way to transmit the HD Signal by the help of Ethernet switcher. Also it can return the received IR signal at the receiver to the sender to help the users to control the HD source at long distance.

• Support video input/output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
• Signal transmission: use one cat6/7(recommend cat6) to connect the sender and receiver, and the Ethernet cable can be up to 150m.

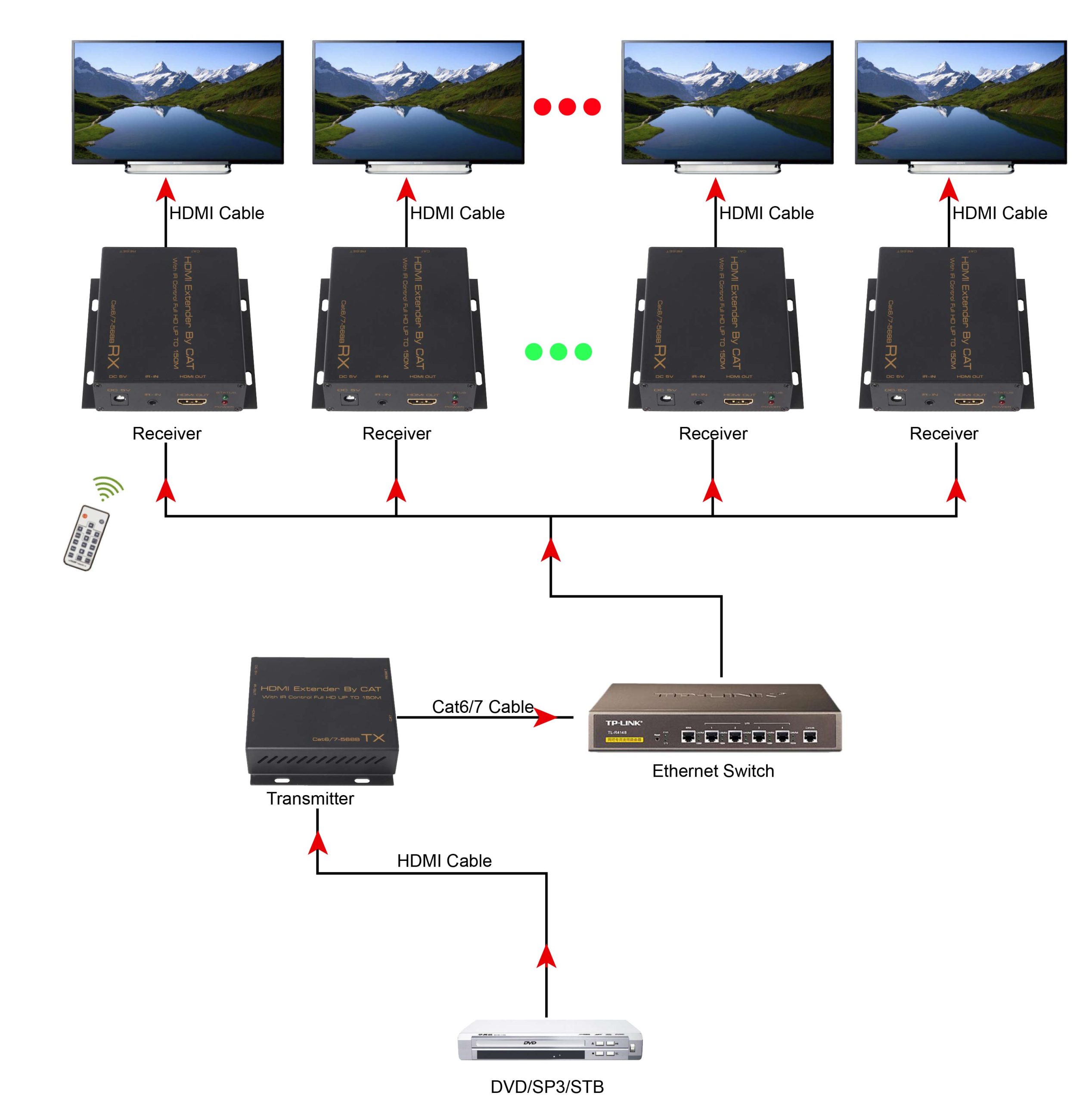

• Support Point to Point, point to multi-point and cascade transmit way.
• Support Resolution up to 1080P/60HZ.
• Support 24/30/36Bit
• Supports 802.3 IEEE Standard
• CAT connections according to IEEE-568B
• Support to transmit the longer distance by the help of the Ethernet switcher.
