HDMI Extender (150m) HDBaseT

SKU: AHDEX-V20150HDB
Brand: Asuka

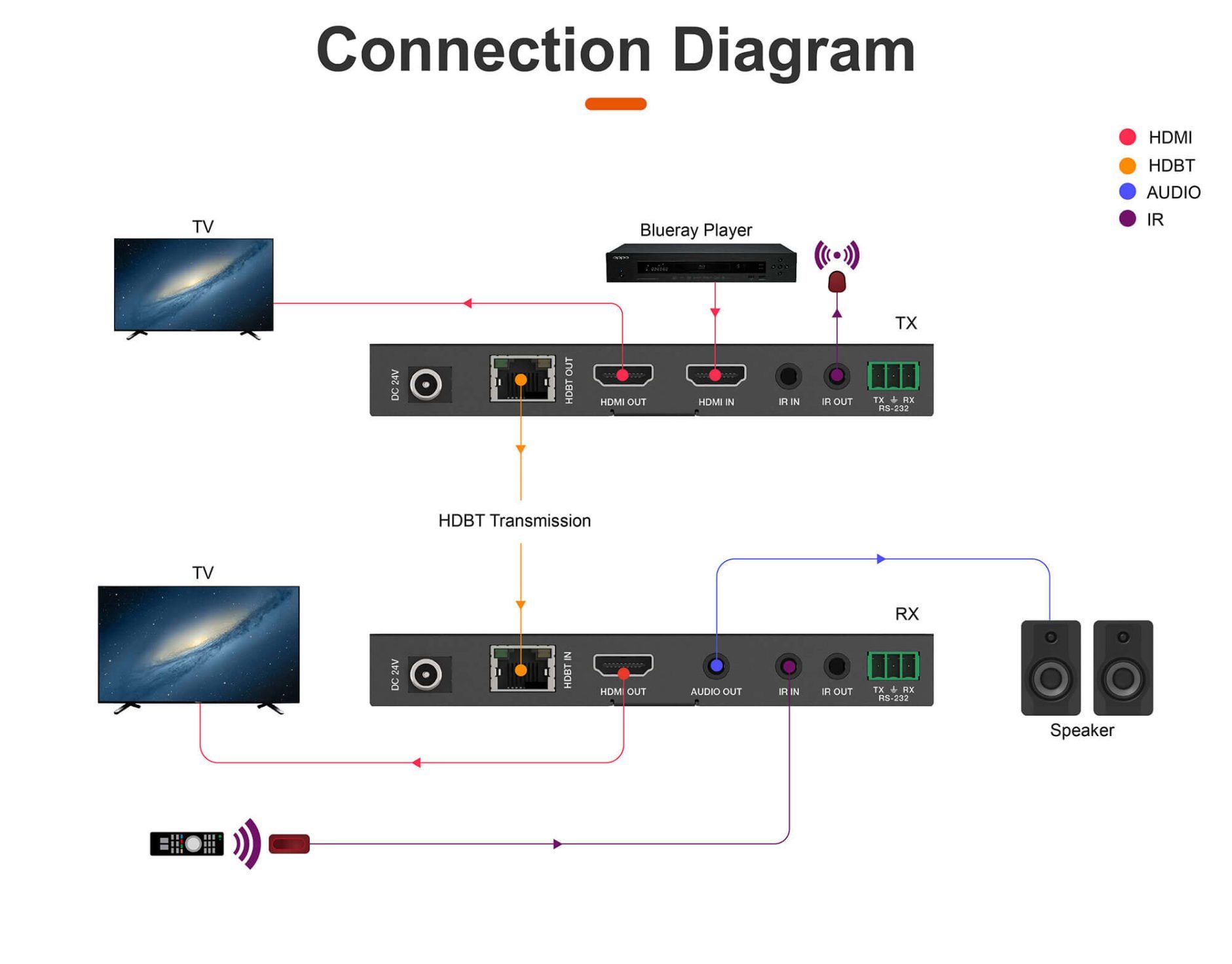

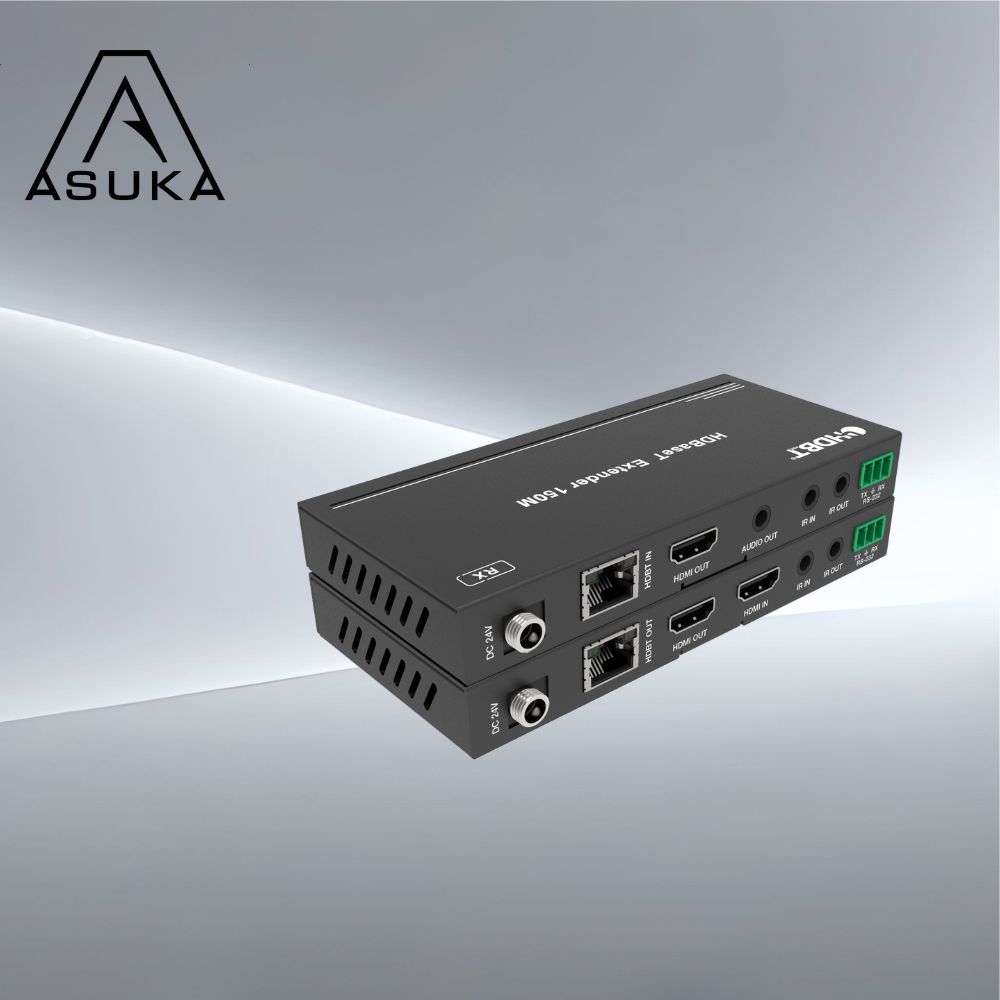

This 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR, and the distance is up to 492ft / 150 meters between transmitter and receiver via a single CAT cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One HDMI loop port is available for output. The extender also supports de-embedded audio for L/R audio output. In addition, the extender is equipped with two-way IR pass-through which allows for source and display control.

  • HDMI 2.0b, HDCP 2.2 and DVI 1.0 compliant
  • Support 18Gbps video bandwidth
  • The maximum extended transmission distance via a single Cat5e/6 cable:
    394ft / 120 meters for 4K2K signal;
    492ft / 150 meters for 1080P signal
  • Support one HDMI loop output on the transmitter
  • Extract audio to analog stereo output on receiver
  • With bi-directional IR, RS-232 and CEC pass-through
  • HDR, HDR10+, Dolby Vision and HLG function supported
  • Support PoC (Power over Cable) function
Download Datasheet


Technical
HDCP Compliance HDCP 2.2 / HDCP 1.4
Video Bandwidth 18Gbps
Video Resolution 4k2k 50/60Hz 4:4:4
4k2k 50/60Hz 4:2:2
4k2k 50/60Hz 4:2:0
4k2k 30Hz 4:4:4
1080p, 1080i, 720p, 720i, 480p, 480i
All HDMI 3D TV formats
All PC resolutions including 1920 x 1200
Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0)
8-bit (4K60Hz 4:4:4)
HDMI Audio Formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DYS HD-HRA, DTS-X
L/R Audio Formats PCM 2.0
ESD Protection Human Body model – ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Connection

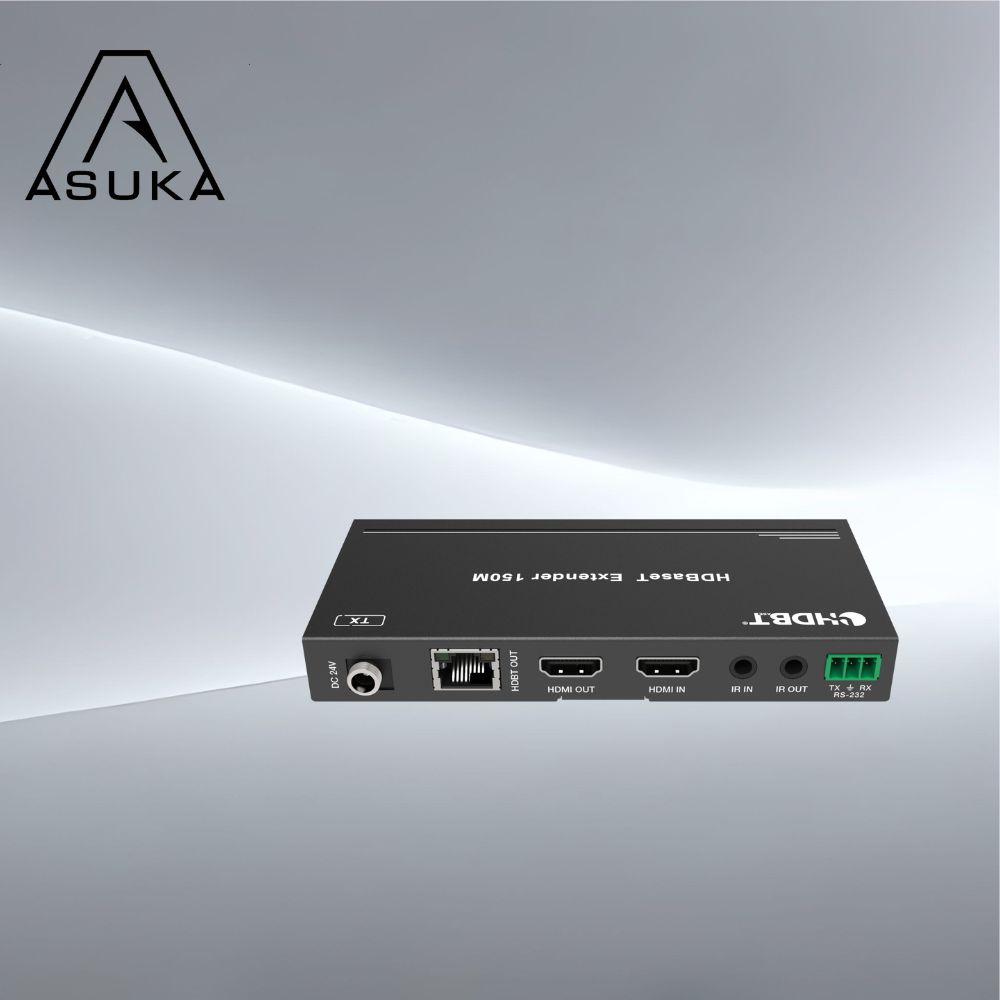

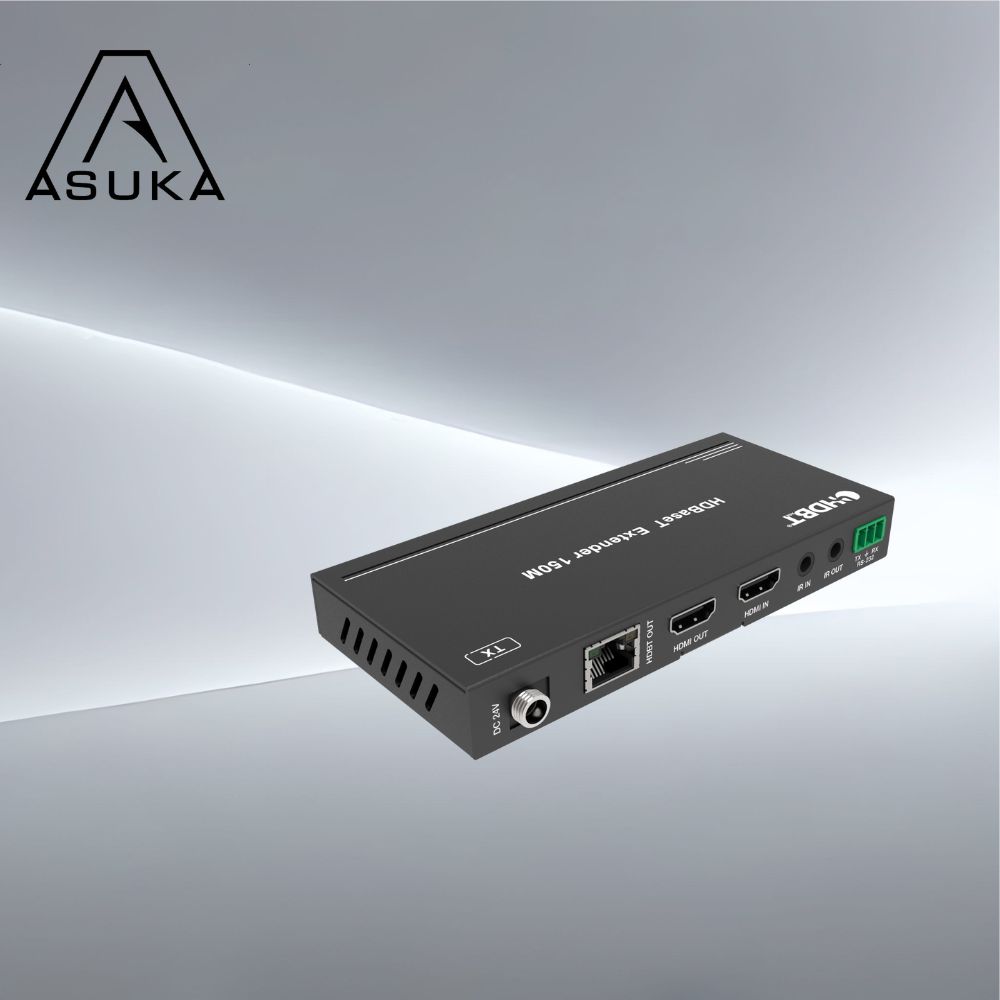

Transmitter Input:
1× HDMI Type A [19-pin female]Output:
1× HDMI Type A [19-pin female]
1× HDBT OUT [RJ45, 8-pin female]Control:
1× IR IN [3.5mm Stereo Mini-jack]
1× IR OUT [3.5mm Stereo Mini-jack]
1× RS-232 [Phoenix jack]
1× SERVICE [Mini-USB, Update port]

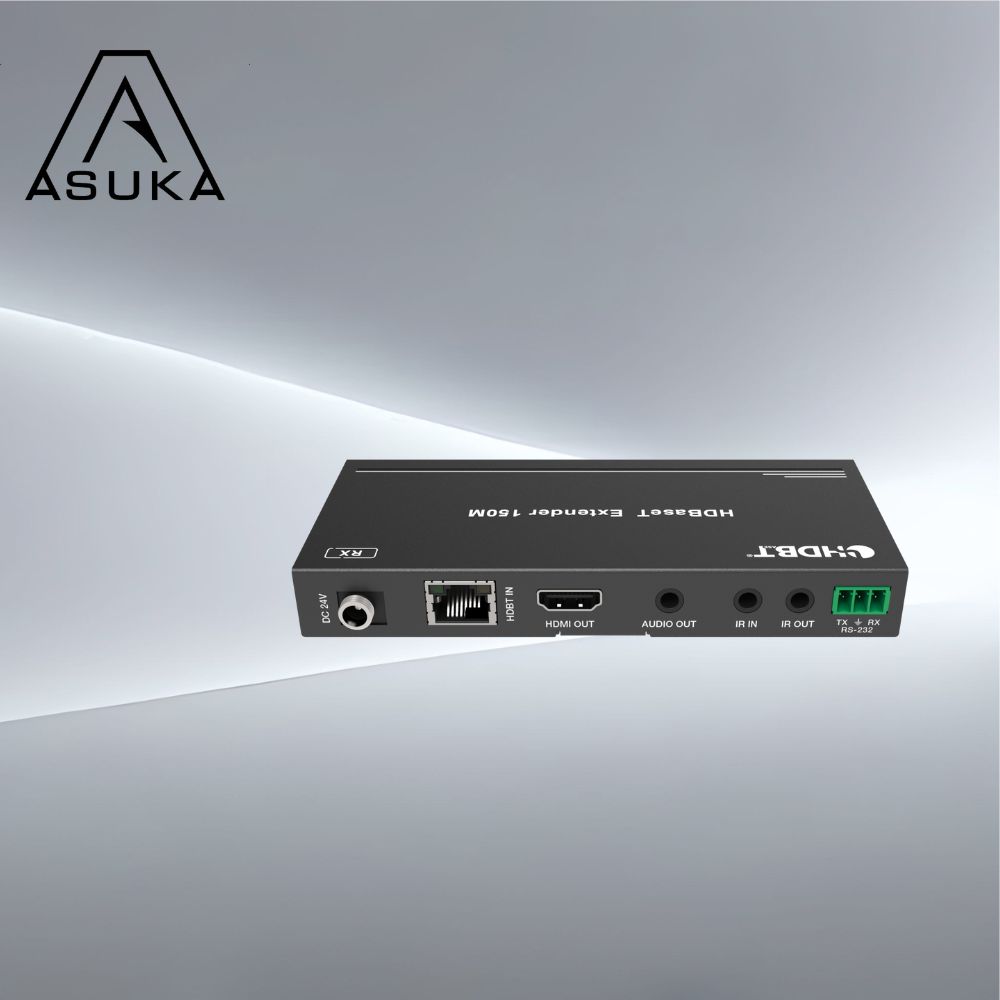

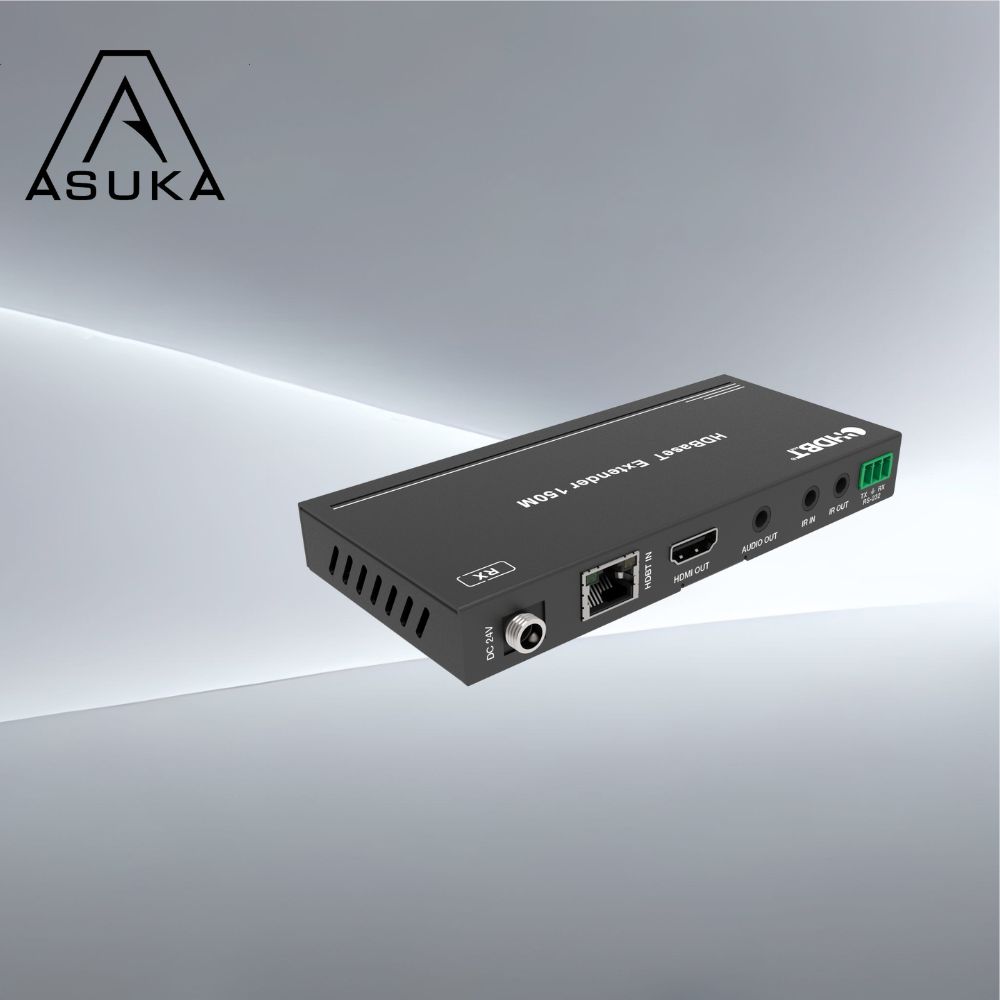

Receiver Input:
1× HDBT IN [RJ45, 8-pin female]Output:
1× HDMI Type A [19-pin female]
1× AUDIO OUT [3.5mm Stereo Mini-jack]Control:
1× IR IN [3.5mm Stereo Mini-jack]
1× IR OUT [3.5mm Stereo Mini-jack]
1× RS-232 [Phoenix jack]
1× SERVICE [Micro-USB jack]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions Transmitter / Receiver: 140mm (W)×65mm (D)×18mm (H)
Weight Transmitter: 160g, Receiver: 155g
Power Supply Input: AC 100 ~ 240V 50/60Hz
Output: DC 24V/1A (Locking connector)
Power Consumption 9.36 W
Operating Temperature 32 ~ 104°F / 0 ~ 40°C
Storage Temperature -4 ~ 140°F / -20 ~ 60°C
Relative Humidity 10%~90% (no-condensation)
Resolution / Distance
4K2K 394ft / 120M
1080P 492ft / 150M
Resolution / Cable Length
HDMI IN / OUT 4K60 – Feet / Meters
16ft / 5M4K30 – Feet / Meters
32ft / 10M1080P60- Feet / Meters
50ft / 15M
The use of ” Premium high Speed HDMI cable is highly recommended.
Click here to download datasheet
