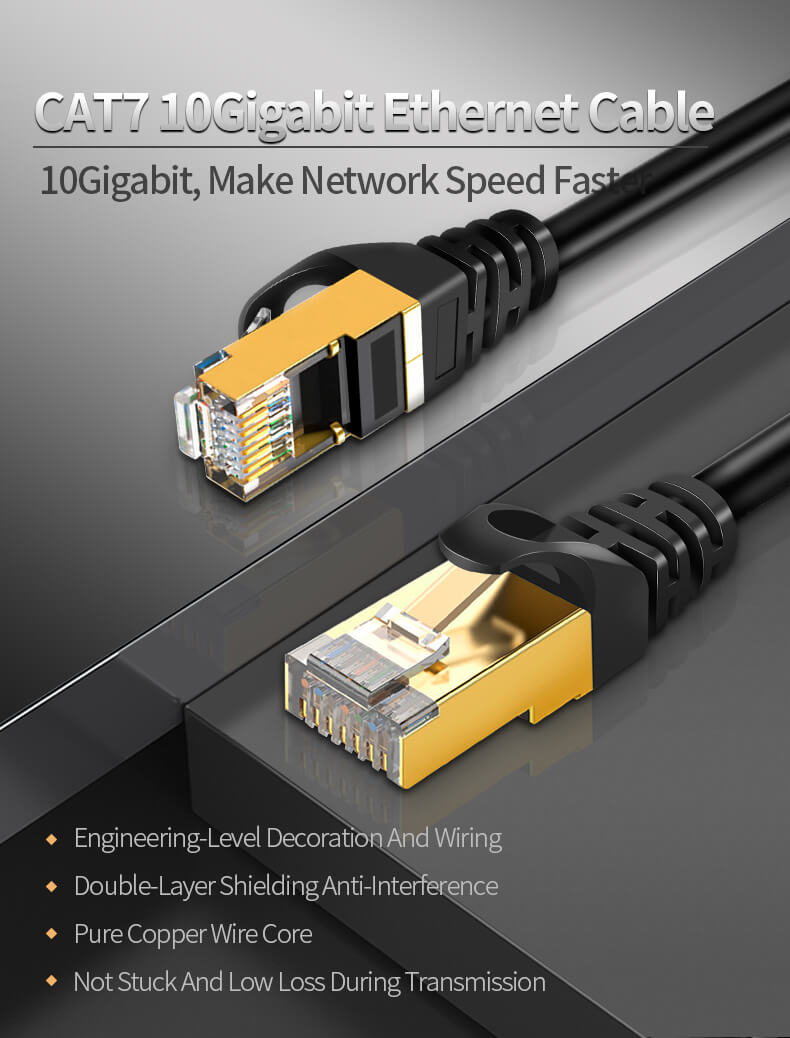

Cat 7 SSTP Ethernet Cable

Brand: Asuka

The Cable speed up to 100Gbps, and bandwidth up to 600MHz.

  • Speed up to 10Gbps
  • Bandwidth up to 600Mhz
  • Shield signal interference
  • 26AWG
  • 8-Core Twisted Pair
  • Double-Layer Aluminum Foil + Ground Wire

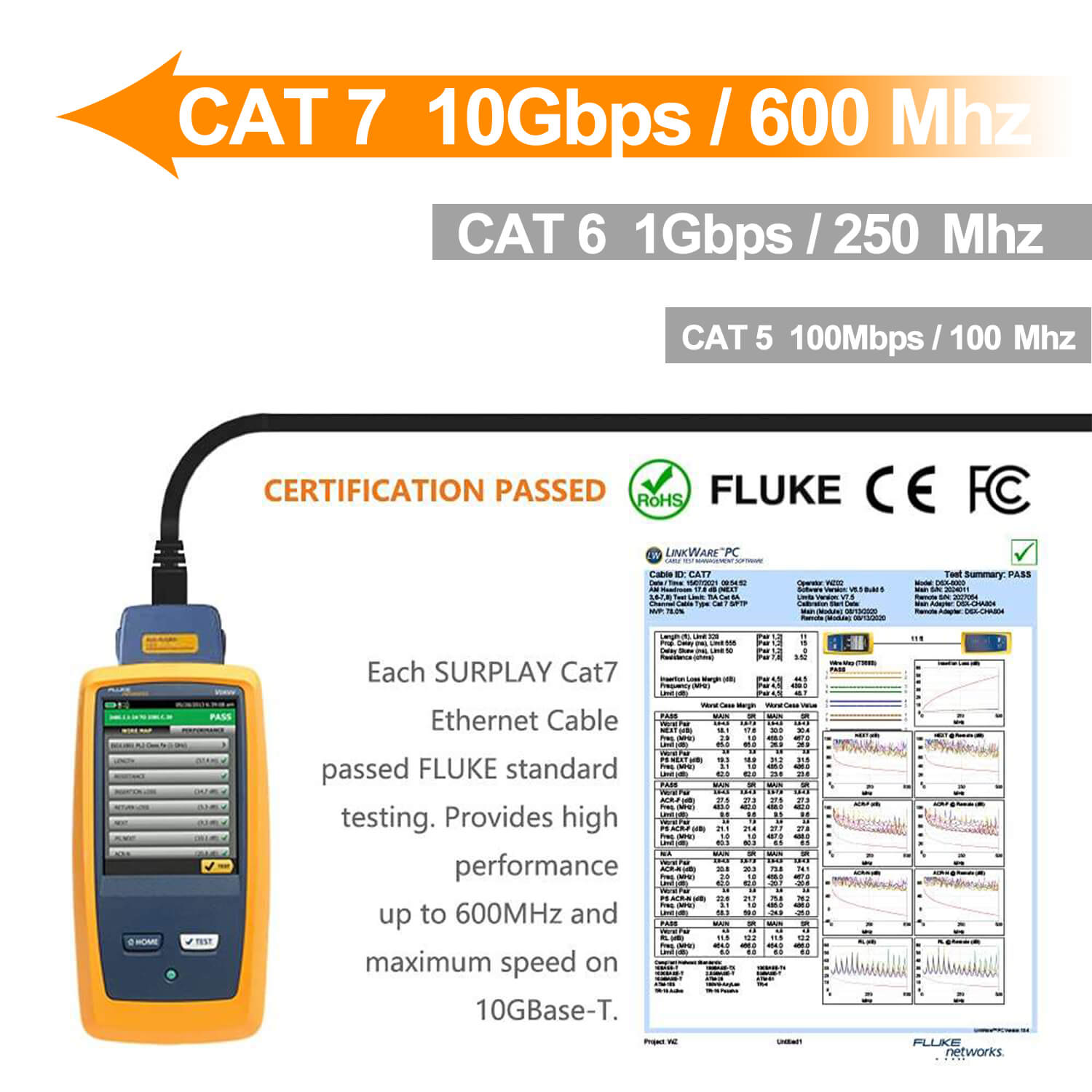

  • Past Fluke test
Download Datasheet

Category Details
Cable Type Category 7 (Cat 7)

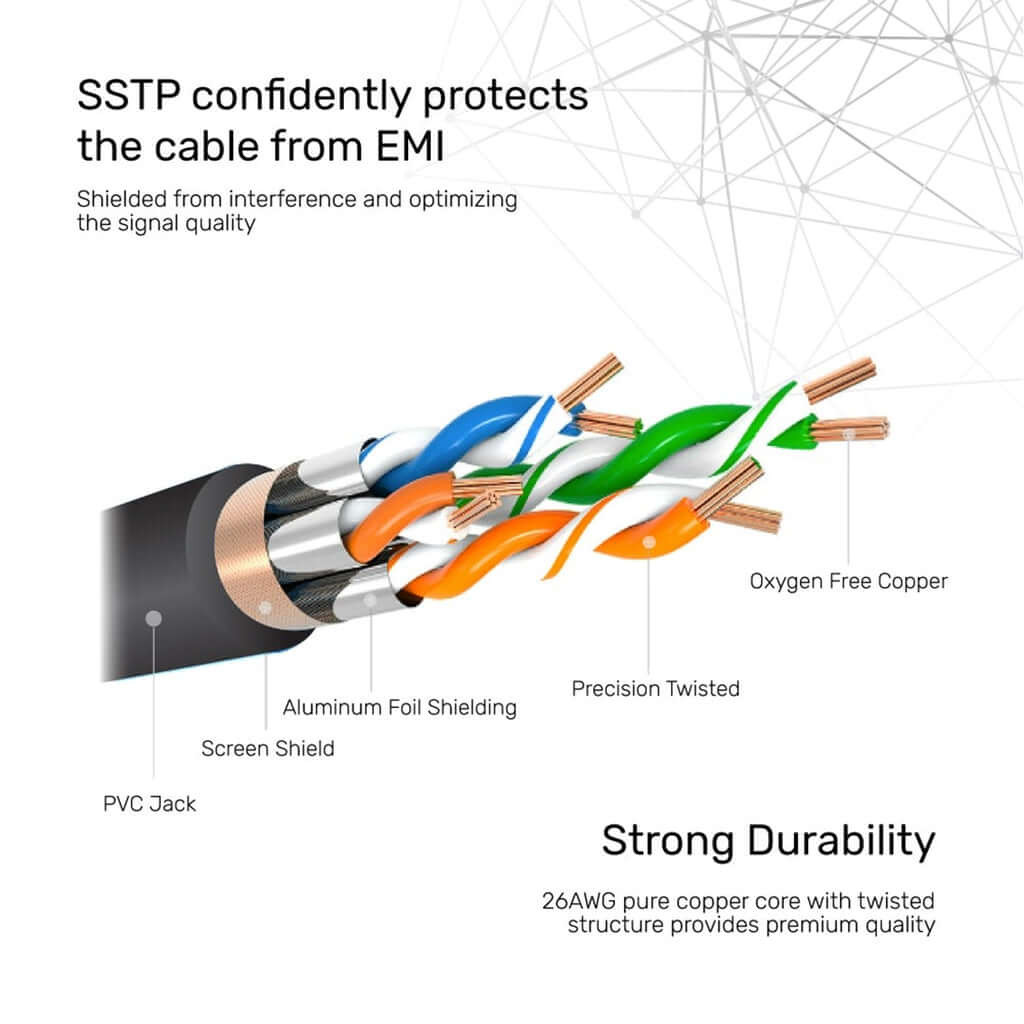

Shielding SSTP (Screened Shielded Twisted Pair) — each pair individually shielded with foil + overall braided shield
Max Bandwidth Up to 600 MHz
Data Rate Up to 10 Gbps (10GBASE-T Ethernet)

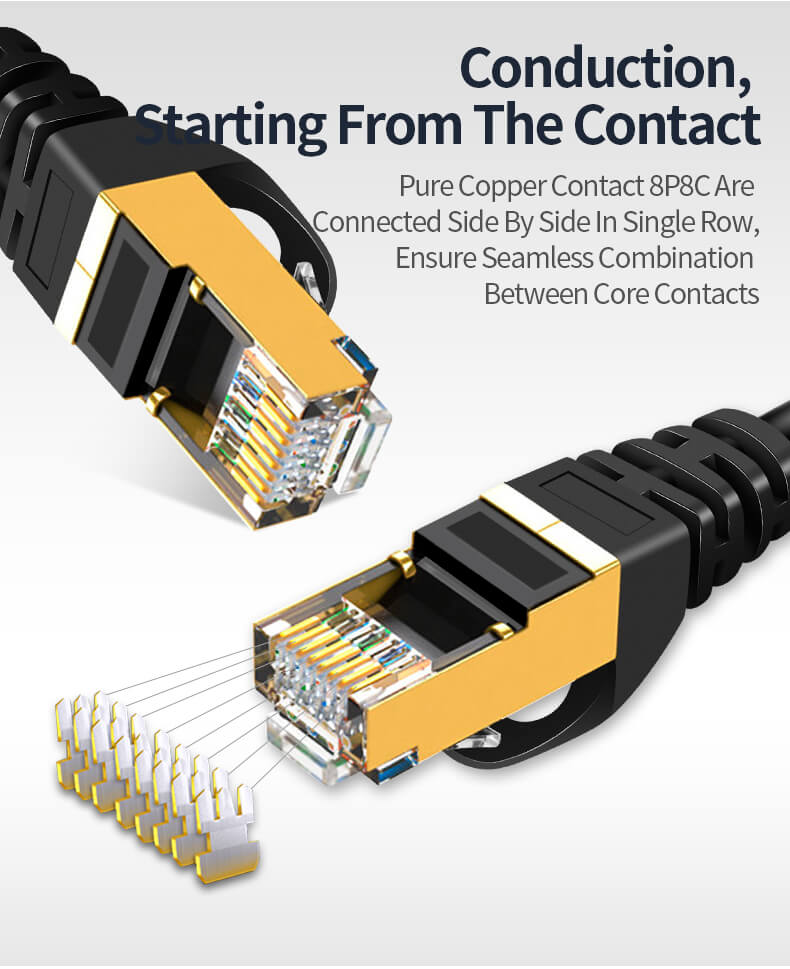

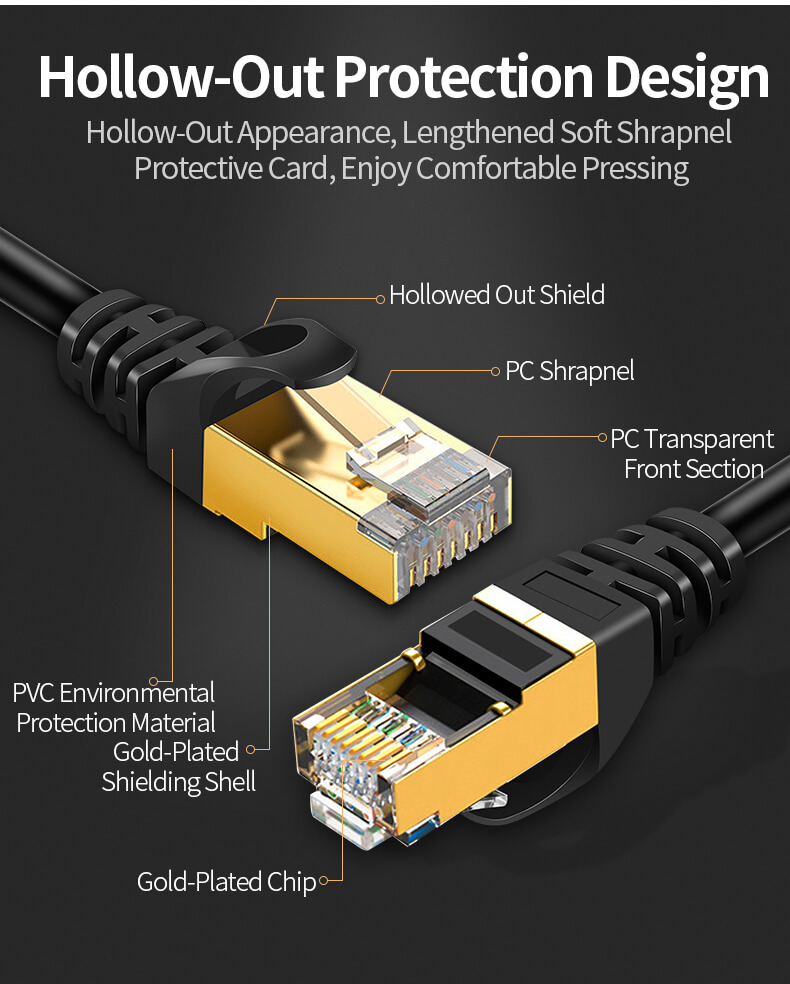

Connector Compatibility RJ45
Cable Structure 4 twisted pairs, individually foil shielded, overall braided shield
Conductor Material 100% copper
Jacket Material PVC
Max Cable Length 100 meters (328 ft) for 10 Gbps
Applications Data centers, high-speed networking, professional A/V, PoE+ capable



Length AWG OD Description Product Code
1.8m 26 6.2mm 8-Core OFC copper 0.16mm ACAT718
3.0m 26 6.2mm ACAT730
5.0m 26 6.2mm ACAT750
10.0m 26 6.2mm ACAT7100
15.0m 26 6.2mm ACAT7150
20.0m 26 6.2mm ACAT7200
Click here to download datasheet

Cat 7 SSTP Ethernet Cable:
